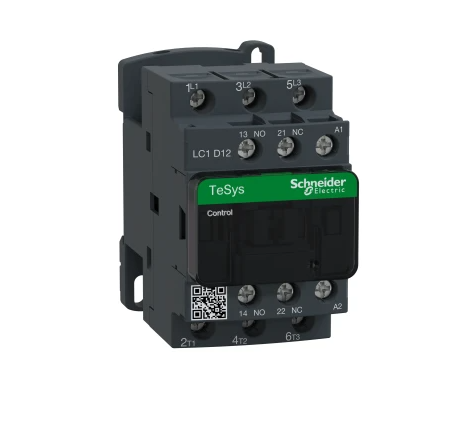

Schneider Electric LC1D Series Contactor, 400 V ac Coil, 3-Pole, 12 A, 3NO, 690 V ac (LC1D12Q7)

3 pole Contactors, AC Controlled, under 18kW power rating TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards. Features and Benefits. Utilisation category AC3 415 Vac switching voltage Pole Contact Composition: 3 NO Auxiliary Contacts: 1 N/O + 1 N/C What does the utilisation category AC1 and AC3 mean for the TeSys contactors? Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions. AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution. AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units. What accessories are available? Auxiliary contact blocks with serrated wiping action. Front mount dust tight auxiliary contact blocks. Pneumatic time delay blocks. Transient voltage surge suppressors. Interface modules and electronic timers. Mechanical latching blocks. Is the TeSys D range a double break pole type contactor? Yes, the Tesys D range uses linear translation movement that provides double breaking of the poles. Approvals UL and CSA LC1D12Q7 Schneider Electric LC1D TeSys D Contactor Features. Motor Control and Resistive load applications. AC-1, AC-3, category. Ue Rated voltage Power circuit <= 300 V DC, Power circuit: <= 690 V AC 25…400 Hz for power circuit. Rated current 12 A (<= 60 °C) at <= 440 V AC AC-3 for power circuit, 25 A (<= 60 °C) at <= 440 V AC AC-1 for power circuit 380 V AC 50/60 Hz Control circuit voltage. 1 NO + 1 NC auxiliary contact. Overvoltage category III. Rated breaking capacity 250 A at 440 V for power circuit conforming to IEC 60947. Complete with a protective cover. Plate and Rail mounting. IP20x front face conforming to IEC 60529.
