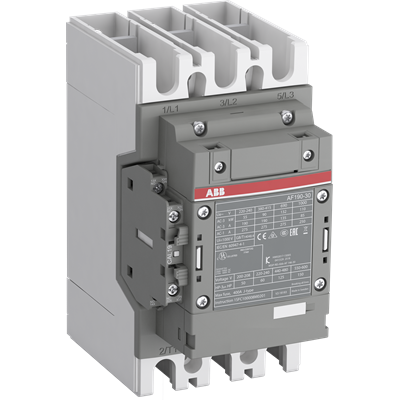

ABB 3 Pole - 1000 V IEC Or 600 V UL Contactor

ABB AF190 AF Contactor, 230 V ac Coil, 3-Pole, 275 A, 90 kW, 3NO, 690 V ac The AF190-30-11-13 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 90 kW / 400 V AC (AC-3) or 125 hp / 480 V UL and switching power circuits up to 275 A (AC-1) or 250 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. Coil Voltage 230 V ac Number of Poles 3 Contact Voltage Rating 690 V ac Contact Current Rating 275 A Range AF190 Power Rating 90 kW Series AF Normal State Configuration 3NO Number Of Auxiliary Contacts 2 Terminal Type Lug Ring Terminal Length 105mm Width 196mm Depth 152mm Minimum Operating Temperature -40°C Pole and Throw Configuration 3P Maximum Operating Temperature +70°C
