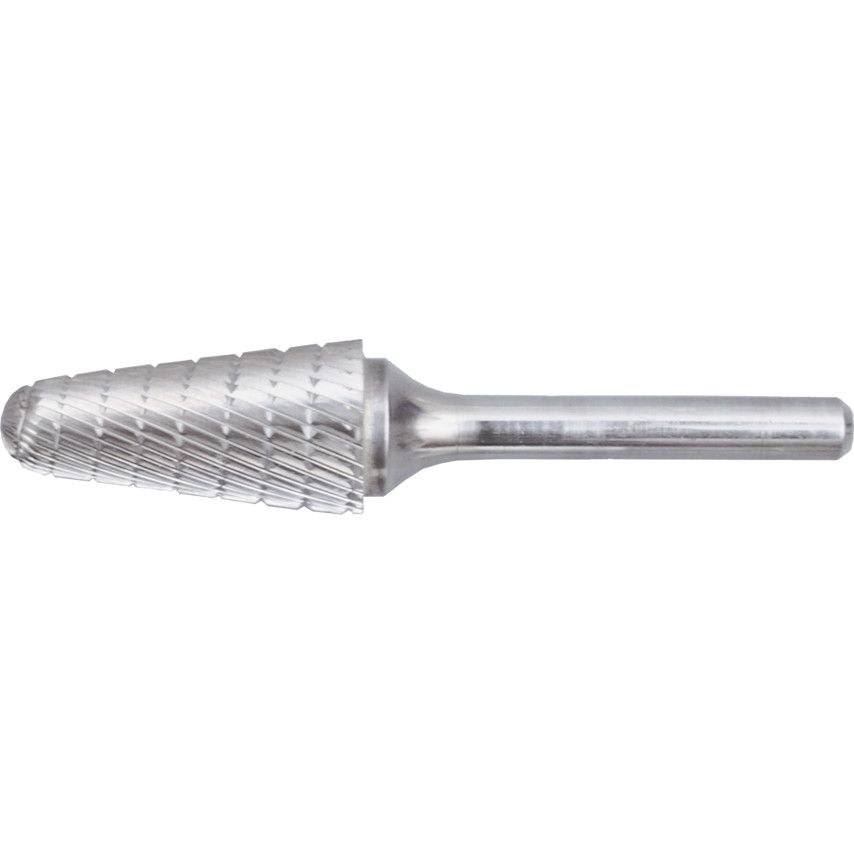

York Carbide Burr, Uncoated, Cut 9 - Chipbreaker, 8mm, Conical

Specification Property Value Brand York Cut No. 9 [#] Cut Type Chipbreaker [txt] EAN13 Barcode 5036140217706 eCl@ss Code 21010101 Finish/Coating Uncoated [txt] Head Diameter 8 mm Head Length 22 mm Head Material Carbide [txt] Head Shape Conical [txt] Included Angle N/A [txt] Overall Length 65 [txt] Shank Diameter 6 mm Supplier Part No. 2108209K UNSPSC Code 23251706 Further Information Property Value Cut Type Cut 9 - Chipbreaker Finish/Coating Uncoated Head Diameter 8 mm Head Length 22 mm Head Material Carbide Head Shape Cone Included Angle 14 ° Overall Length 65 mm Shank Diameter 6mm Cut 9 Carbide Rotary Burrs Cut 9 carbide rotary burrs features a cut 9 chipbreaker for fast stock removal, improved control and reduced chips for use on hard materials, i.e. steel alloy 50RC, 60RC, carbon and cast iron. Features and Benefits • Manufactured from carbide for greater hardness • Cut 9 chipbreaker for fast stock removal, improved control and reduced chips • Suitable for use on hard materials up to HRC65 hardness Typical Applications • Deburring • Cast iron • Cast steel • Carbon steel • Alloy steel • Stainless steel Notes • Work piece and tools should always be steady and well supported • Carbide burrs are not suitable for 'milling' large amounts of material, they are for light stock removal and high revolutions 'LOW FEED - HIGH SPEED' • Always ensure that at least 70% of the shank length is clamped by the collet or chuck of the tool being used • Always ensure that the tool is rated to the recommended operating speed of the burr
