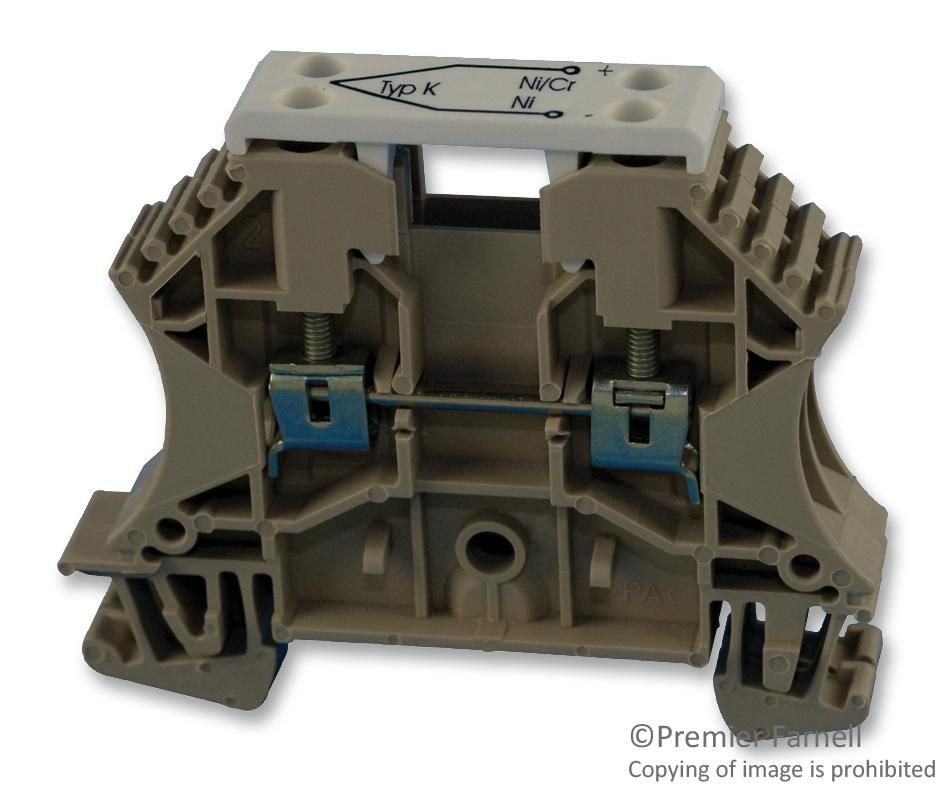

Weidmuller 1024100000 Dark Beige W Thermoelectric Voltage Terminal Block

Manufacturer: Weidmuller Mfr. Part No.: 1024100000 W Series Modular Thermocouple Terminals Single level, 2.5mm², 55 V A versatile and extensive range of 2.5 mm² thermocouple terminal blocks compatible with the most popular thermocouple types: 8239726 - Type K 8239720 - Type T 8239739 - Type J 8239732 - Type SR 8239736 - Type B 8239745 - Type E 8239748 - Type N Hardened steel for mechanical strength and high-quality tinned copper contacts for optimum conductivity. All materials comply with RoHS requirements and have been tested to current environment guidelines. Features and Benefits • Spring and screw connection technology • Snap-on mounting Features and Benefits CE, CSAEX, ATEX, EAC, Exi, IECEx-SIRA, IEC EC, INMETRO The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042. Specifications Attribute Value Colour Dark Beige Number of Levels Single Series W American Wire Gauge 26 → 12AWG Termination Method Screw Cable CSA 2.5mm² Current Rating 1 (ATEX)A Voltage Rating 55 V Pitch 10.2mm Minimum Operating Temperature -50°C Maximum Operating Temperature +120°C
