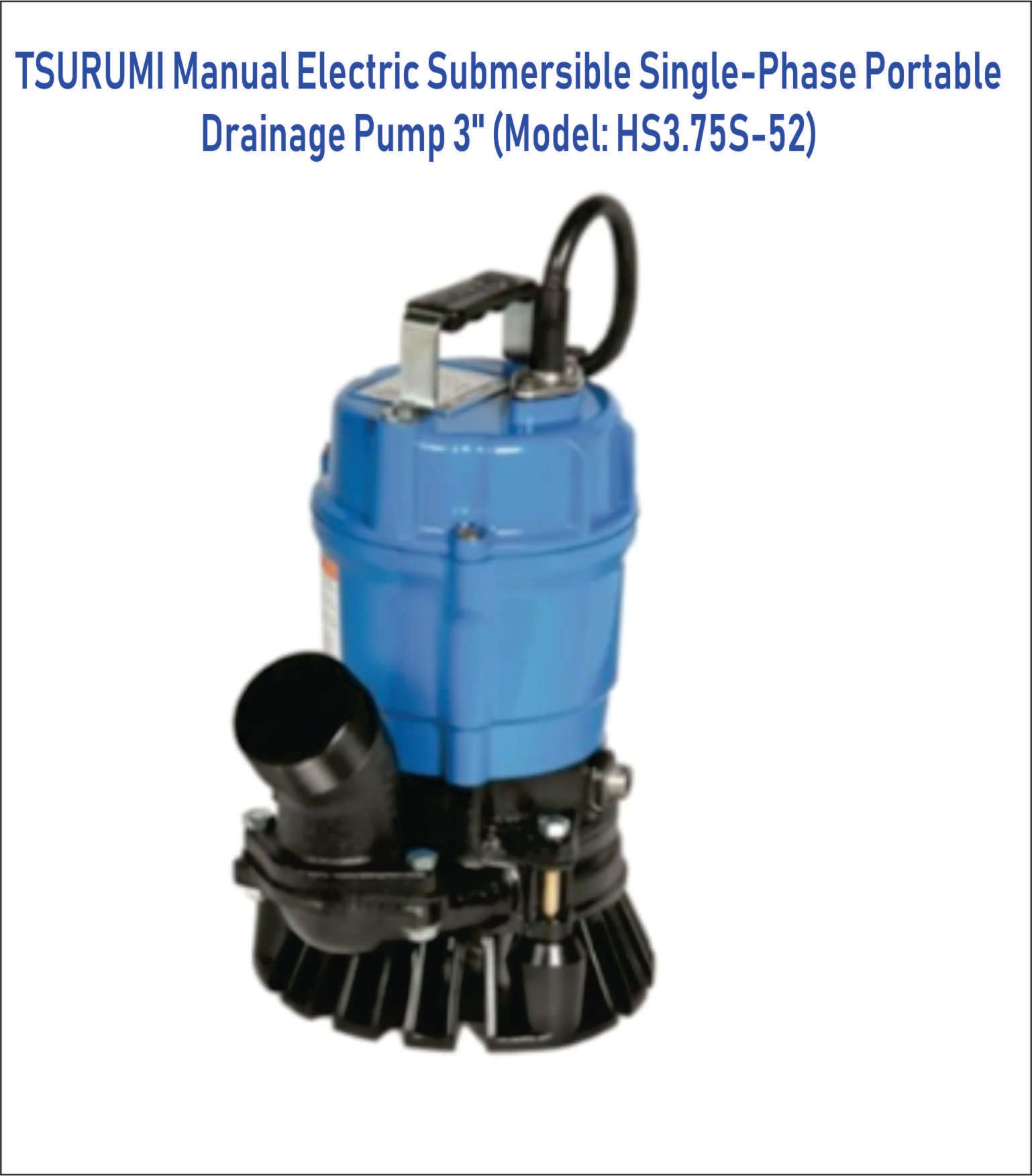

TSURUMI Manual Electric Submersible Single-Phase Portable Drainage Pump 3'' (Model: HS3.75S-52) -FREE DELIVERY CHARGE

The HS/HSZ/HSD/HSR series are submersible single-phase portable pumps. The shaft-mounted agitator prevents the air lock that tends to take place on vortex or semi-vortex pumps.* The rubber/resin-made stand protects the floor surface from scratching. The HSZ-series with a single float switch reduces power consumption and extends operating life. The HSD pump is equipped with a high-chromium cast iron agitator that assists smooth suction of the settled matters. The HSR pump can start pumping if there is water with its level of 5mm or more and can continue pumping the water level goes down to 1mm. Additionally, the discharge direction is selectable between vertical and inclined, which prevents folding or bending of the discharge hose. * excluding HSR Electric Submersible Pump Degree of Protection: IP 68 Pressure Resistance: Max. 10m Type of Impeller: Semi-Vortex Max. Solid Handling: 7mm Suitable for: Rain Water, Ground Water, Sand Water Dry-Type Submersible Induction Motor Discharge Port: 3'' Head: 18,0 m Insulation Class: E Number Of Poles: 2 Speed: 2830 1/min Starting Mode: Directly Rated Voltage: 230 V Frequency: 50 Hz Phases: 1~ Power Uptake: 1,06 kW Rated Power: 0,75 kW Rated Current: 4,8 A Start Current: 14,6 A 10m H07RN-F 3Cx1mm² Miniature protector in windings Double inside mechanical seal in oil bath additional lubrication by oil lifting device Primary seal: Silicon carbide on silicon carbide Secondary seal: Carbon on ceramic Shielded ball bearings, maintenance-free Impeller: Urethane rubber Pump casing: FCD700 (EN-GJS-700-2) Motor Frame: Aluminium die casting Shaft: SUS403 (EN-X6Cr13) Discharge Size: 3" (80mm) BS-coupling (threaded flange) Weight: 19,6 kg (dry weight of the pump only without cable)
