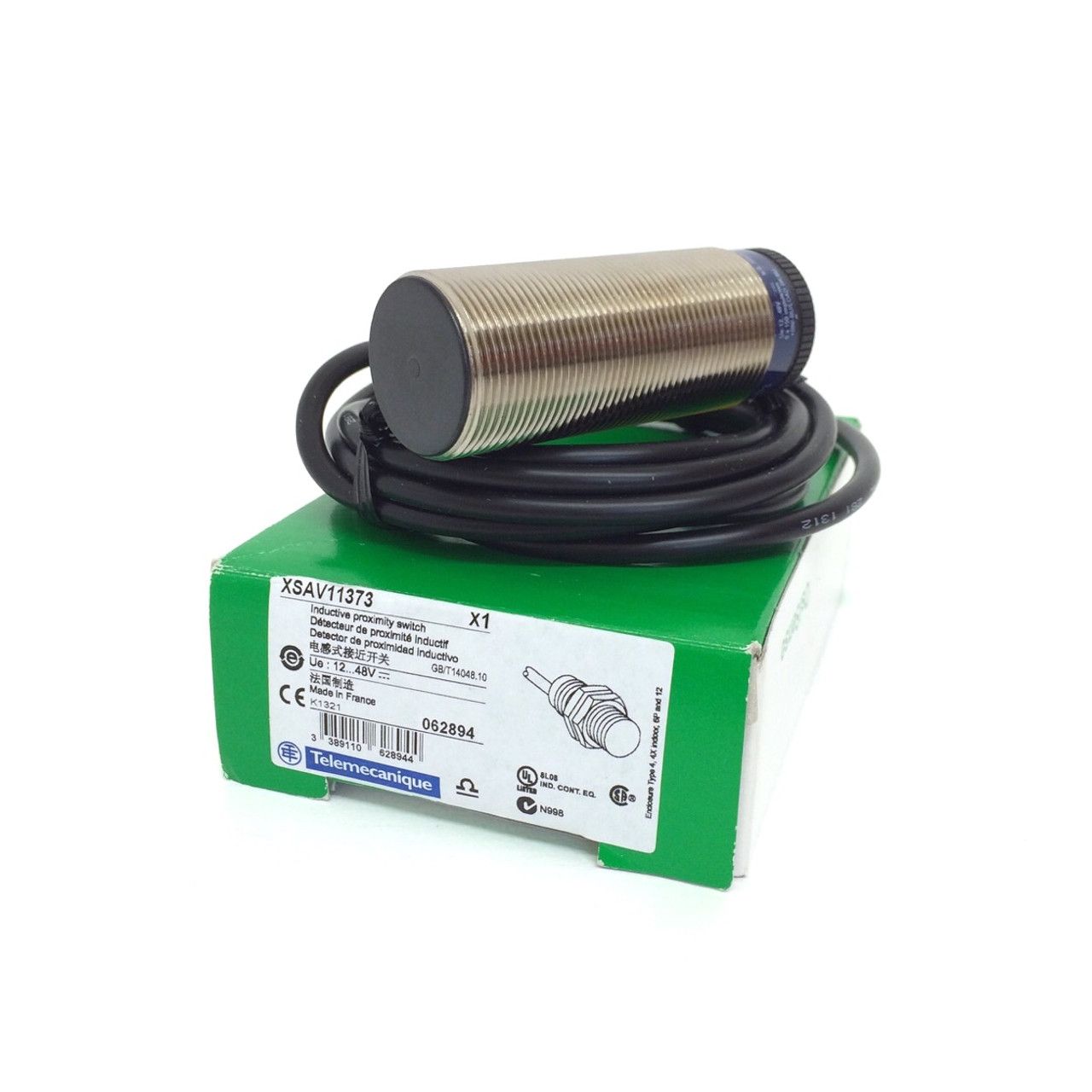

Telemecanique Sensors Inductive Barrel-Style Proximity Sensor - XSAV11373

The OsiSense XSAV series 10mm diameter 3-wire DC solid-state output plain Inductive Proximity Sensor that is solely for the detection of metal objects. It basically comprises an oscillator whose windings constitute the sensing face. An alternating magnetic field is generated in front of these windings. Composition of an inductive proximity sensor with detection of a metal object. When a metal object is placed within the magnetic field generated by the sensor, the resulting currents induced form an additional load and the oscillations cease. This causes the output driver to operate and, depending on the sensor type, a normally open or normally closed output signal is produced. It enables the detection, without physical contact of metal objects. Telemecanique inductive proximity sensor incorporates an output state LED indicator. The flush mountable sensor using teach mode is fitted with a green LED that indicates power-ON and also assists the user during setting-up (teach mode). High operating rates Fast response Excellent resistance to industrial environments (robust products, fully encapsulated in resin) No moving parts, therefore service life of sensor not related to number of operating cycles Specifications Attribute Value Body Style Barrel Thread Size M30 x 1.5 Sensor Technology Inductive Output Type PNP-NC Detection Range 10 mm Terminal Type Cable Supply Voltage 12 → 48 V dc IP Rating IP67 Length 81mm Maximum DC Voltage 58V Mounting Type Flush Mount Switching Current 200 mA Maximum Operating Temperature +70°C Housing Material Metal Maximum Switching Frequency 100Hz Reverse Polarity Protection Yes Short Circuit Overload Protection Yes Minimum Operating Temperature -25°C
