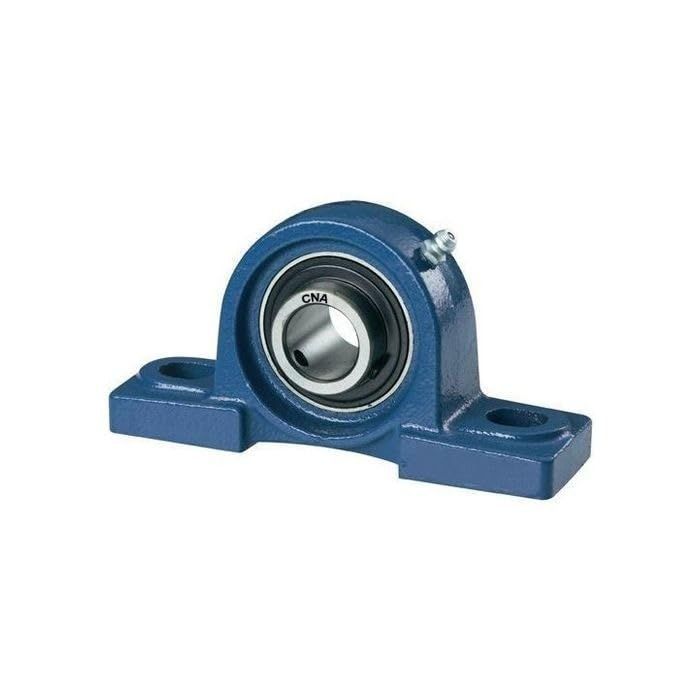

SKF UCP 210 Pillow Block Unit

Pillow block ball bearing unit with extended inner ring and set screw locking, cast iron, Japanese standards Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is strong and stiff, and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount. Strong Designed for a constant and alternating rotation Ready to mount Lubricated and sealed bearing Quick locking onto the shaft Cost-effective Dimensions Shaft diameter50 mm Centre height (pillow block)57.2 mm Housing overall width56 mm Centre distance between bolt holes159 mm Bearing width, total51.6 mm Performance Basic dynamic load rating35.1 kN Basic static load rating23.2 kN Limiting speed3 300 r/min Note Limiting speed with shaft tolerance h6 Properties Housing type Pillow block Number of bolt holes for fasteners 2 Fastening bolt hole type Plain Retaining feature, inner ring Set screws Bore type Cylindrical Rubber seating ring Without Material, housing Cast iron Material, bearing Bearing steel Coating Without Sealing, bearing Seal and flinger on both sides Sealing type Contact, standard Sealing, unit Without Lubricant Grease Relubrication hole With Grease fitting With
