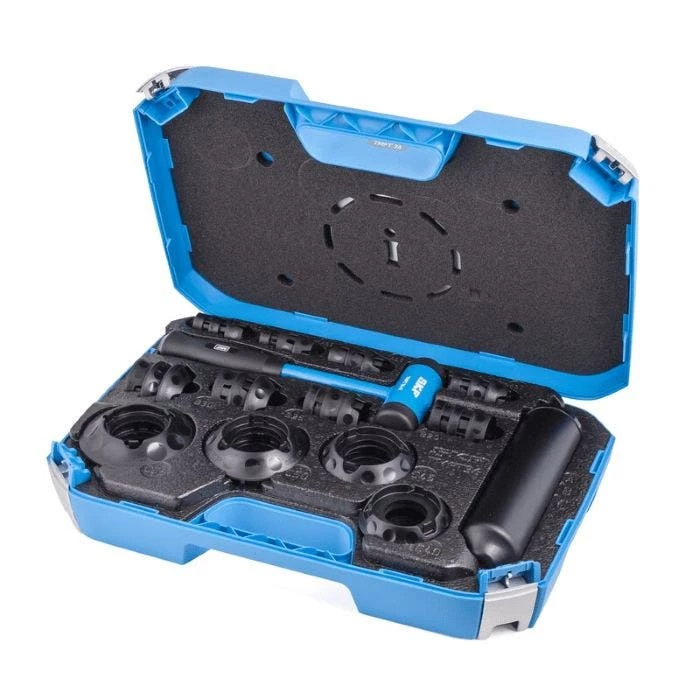

SKF TMFT 36 Bearing Fitting Tool Kit

SKF TMFT 36 Bearing Fitting Tool Kit Primary uom : PC Catalog number : TMFT 36 Weight : 4.493 kg The TMFT 36 facilitates the mounting of different bearings with bore diameters from 10 – 55 mm (0.39 – 2.17 in). The right combination of impact ring and sleeve allows effective transmission of mounting force to the bearing ring with the interference fit, minimising the risk of damaging the bearing’s raceways or rolling elements. The TMFT 36 is also suitable for mounting other components such as bushings, seals and pulleys. Features : - Facilitates correct mounting on shaft, housing and blind applications - The diameter of the impact ring precisely fits the inner and outer diameter of the bearing - Impact rings and sleeves are made of high impact resistant material for longevity and are also suitable for use under a press - Impact rings are marked for clear visual identification of the ring’s size and easy selection - The nylon double-side head of the dead-blow hammer helps to prevent damaging the components - The ergonomic hand grip of the dead-blow hammer provides excellent grip Specifications : - Impact ring - Bore diameter range : 10 - 55 mm - Impact ring - Outer diameter range : 26 - 120 mm - Number of rings : 36 - Number of sleeves : 3
