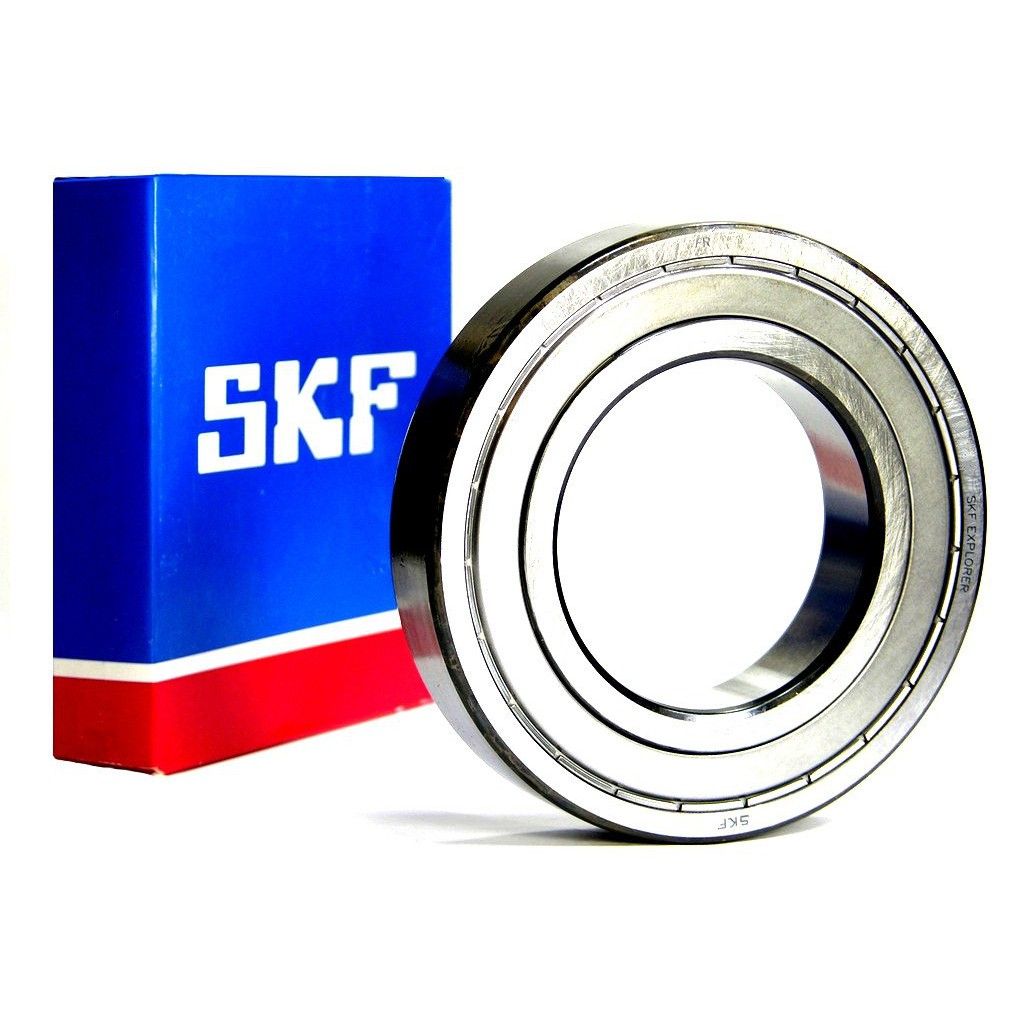

SKF 6308/C3 Deep Groove Ball Bearing

SKF Steel Deep-Groove Ball Bearing, 40mm ID, 90mm OD - 6308/C3- Plain Race Type, 40mm I.D, 90mm O.D Manufacturer: SKF Mfr. Part No.: 6308/C3 Use this deep-groove ball bearing from SKF to support the smooth movement of your industrial machinery. Eight balls are set in a cage between two rings and are guided on a deep-groove track. This setup ensures the balls can turn freely with minimal friction, reducing wear, as well as minimising noise and vribration. As it's capable of speeds up to 11,000rpm, the bearing is suitable for high-performance motors and rollers. It's a versatile option, able to carry radial loads and axial loads in either direction. • Race, cage and balls are made from steel to make the component strong and durable • A static load rating of 24kN and a dynamic load rating of 42.3kN means it's suitable for heavy-duty applications • Open ends for easy lubrication • Race width of 23mm to suit compact machinery Applications • Electric motors • Pumps and compressors • Conveyor rollers How do I make it easier to fit and remove a deep-groove ball bearing? Heating the inner ring of larger ball bearings makes them easier to mount on shafts. Using a suitable jaw puller helps to remove them. Specifications Attribute Value Inside Diameter 40mm Outside Diameter 90mm Ball Bearing Type Deep Groove Race Width 23mm End Type Open Number of Rows 1 Static Load Rating 24kN Material Steel Ball Material Steel Cage Material Steel Race Material Steel Race Type Plain Dynamic Load Rating 42.3kN Bore Type Parallel
