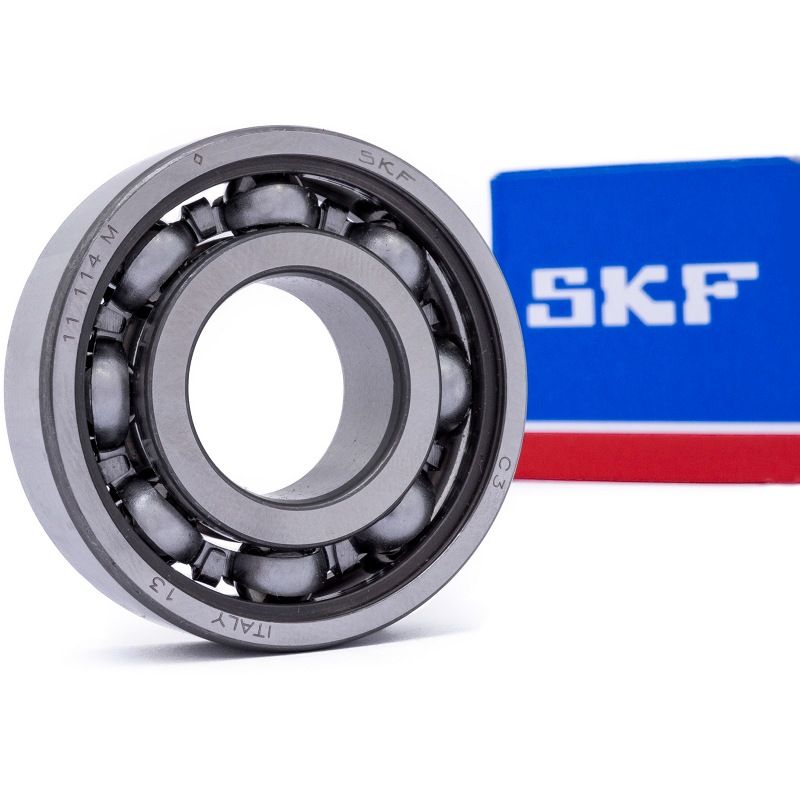

SKF 6204 Deep Groove Ball Bearing

SKF Deep-Groove Ball Bearing, 20mm ID, 47mm OD - 6204 Support machine loads and reduce friction build-up with this SKF deep-groove ball bearing. The unit has an inner and outer ring which houses eight balls that rotate in response to machine movement. As it's an open-ended ball bearing, you can easily lubricate the mechanism without the need to uninstall it. A bearing like this one is frequently fitted to a rotating shaft used in high performance tools, such as CNC (computer numerical control) lathes. • Made from corrosion-resistant steel material for reliable operation in damp or humid environments • Limiting speed of 20,000r/min (rotations per minute) ensures it's suitable for use with high-speed machinery Applications • Agricultural machinery • Offshore drills • Industrial fans • Hydrocarbon processing • Electricity generators What kind of loads can this ball bearing withstand? The component has a 6.55kN (kilonewton) static load rating and a 13.5kN dynamic load rating. Applications This ball bearing has a 14mm race between the outer and inner rings and features a deep enough groove to let you apply a rubber seal for extra protection. Specifications Attribute Value Inside Diameter 20mm Outside Diameter 47mm Ball Bearing Type Deep Groove Race Width 14mm End Type Open Number of Rows 1 Static Load Rating 6.55kN Material Steel Ball Material Stainless Steel Cage Material Steel Race Type Plain Dynamic Load Rating 13.5kN Bore Type Parallel
