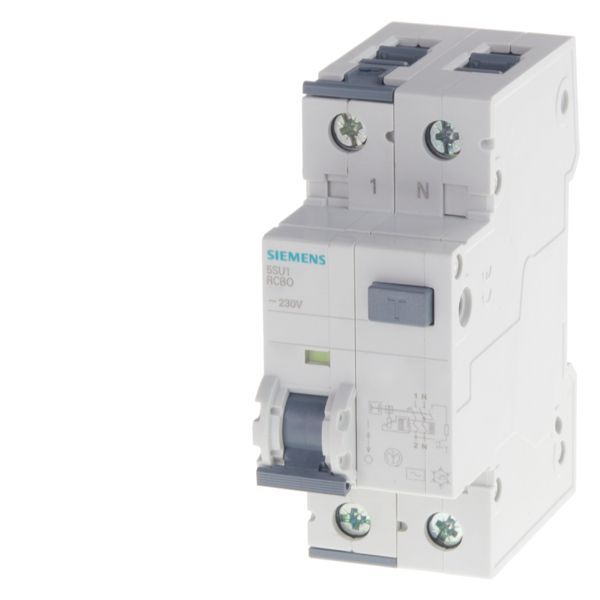

Siemens RCBO - 1P+N - 5SU1356-6KK06

Manufacturer: Siemens Mfr. Part No.: 5SU1356-6KK06 Siemens RCBO - 1P+N, 6A Current Rating, 5SU1 Series RCBOs are a combination of an RCCB and a miniature circuit breaker in a compact design for personnel, fire and line protection. For personnel protection and fire protection, the residual current part of the type AC trips in the event of sinusoidal AC residual currents, type A also trips in the event of pulsating DC residual currents. In addition, RCBOs type F also detect residual currents with mixed frequencies up to 1 kHz. RCBOs with a rated residual current of maximum 30 mA are used for personnel, material and fire protection, as well as for protection against direct contact. Clear and visible conductor connection in front of the rear bus bar facilitates controls Large and easily accessible wiring space enables easy insertion of conductor in the terminals The surge current withstand capability of over 1 kA ensures safe and reliable operation All additional components for miniature circuit breakers can be retrofitted on the right-hand side Specifications Attribute Value Range Sentron Series 5SU1 Current Rating 6A Trip Sensitivity 30mA Number of Poles 1P+N Mounting Style DIN Rail Mount Rated AC Voltage 230V Circuit Breaker Type RCBO Overall Dimensions 35.4 x 90 x 76.2mm Break Time Instantaneous Reset Actuator Type Toggle Switch Overall Width 90mm Overall Depth 76.2mm Terminal Contact Type Screw Overall Length 35.4mm
