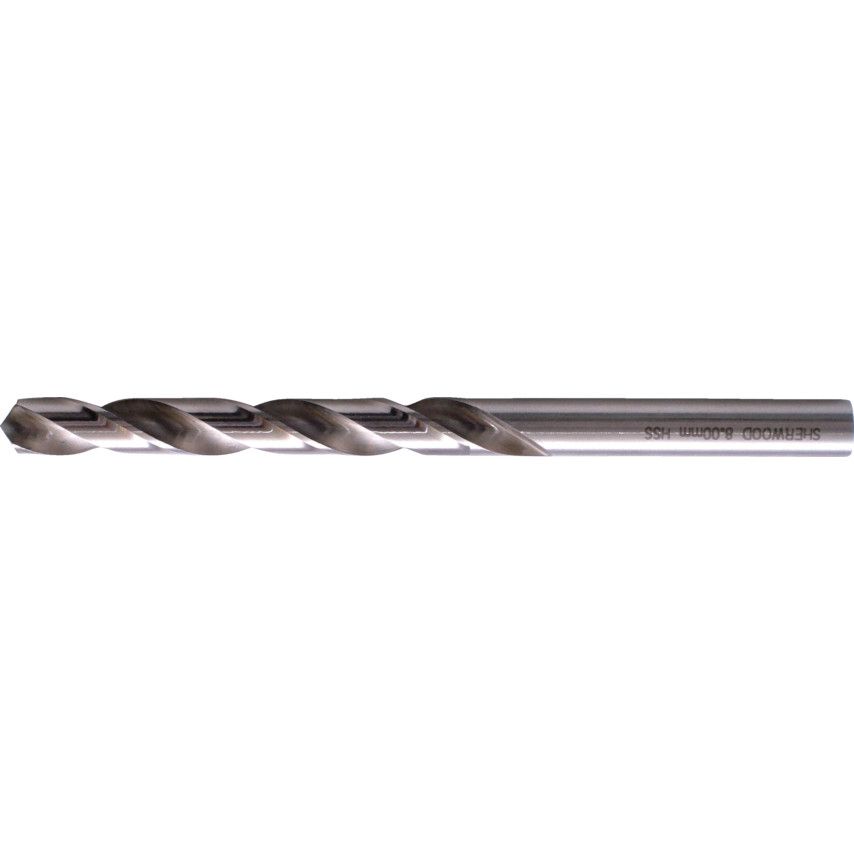

SHERWD Sherwood 18.00mm HSS Straight Shank Jobber Drills - Bright Finish SHR0250241V

Series J100 - Metric General purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118°, helix angle: normal, web thickness: standard, relief angle: 10°-20°, tolerance of diameter: h8, tolerance of shank: f11. Manufactured to BS 328/DIN338RN. Bright Finish Drills with a bright finish are supplied in the as-ground condition and such tools are used generally in the machining of non-ferrous materials. Specification Property Value Brand Sherwood Coolant Delivery External [txt] Cutting Direction Right Hand [txt] Drill Diameter 18.00 mm Drill Diameter Tolerance h8 [txt] EAN13 Barcode 5036140270886 eCl@ss Code 21010101 Finish/Coating Bright [txt] Flute Construction Ground Flute [txt] Flute Length 130 mm Flute Type Spiral [txt] Helix Type Normal Helix [txt] Material High Speed Steel [txt] Material Grade M2 [txt] Number of Ends Single-ended [txt] Number of Flutes 2 [#] Overall Length 191 mm Point Angle 118 ° Point Type Split Point [txt] Series J100 [txt] Shank Diameter 18.00 mm Shank Diameter Tolerance f11 [txt] Standards Met BS 328;DIN338RN [txt] Supplier Part No. SHR-025-0241V UNSPSC Code 23241634 Web Thickness Standard [txt] Further Information Property Value Coolant Delivery External Cutting Direction Right Hand Drill Diameter Metric 18 mm Drill Diameter Tolerance h8 Finish/Coating Bright Flute Construction Ground Flute Flute Length 130 mm Flute Type Spiral Helix Type Normal Helix Material High Speed Steel Number of Flutes 2 Overall Length 191 mm Point Angle 118 ° Point Type Split Point Shank Diameter Tolerance f11 Standards Met BS 328; DIN 338RN Web Thickness Standard
