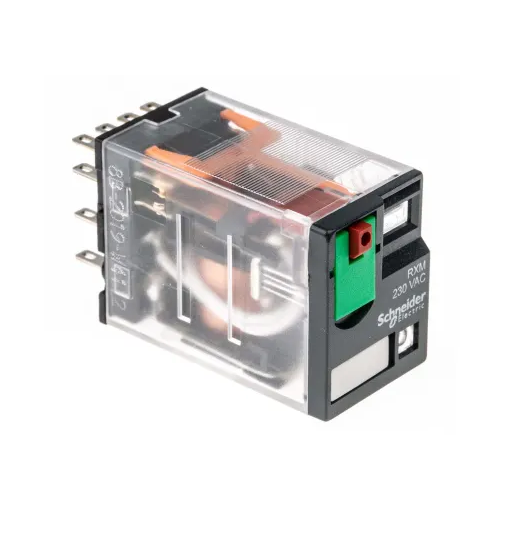

Schneider Electric RXM4AB2P7 Plug In Power Relay, 230V ac Coil, 8A Switching Current, 4PDT

RXM Series Miniature Relays with LED The compact Zelio RXM miniature relays with LED from Schneider Electric can be used to increase the functions in electrical enclosures, particularly useful for industrial applications, machine/building equipment and HVAC. Features & Benefits Range of miniature plug-in relays on base, RXZE2 type Simple to use- no adjustment required for standard applcations Easily integrated into current devices & can be adapted for all voltages Test button and mechanical indicator of relay status Bases for assembly on DIN rail or with screws to be ordered separately What is a non-latching relay and how do they work? A relay is an electrical switch that is operated by electrical pulses, their primary function is to open and close a circuit. When power passes through a circuit, a relay switches position (usually from NC to NO) using an internal coil which generates a magnetic force. This force then holds the relay in a NO position, when the current is switched off the relay returns to the NC position. This function is what makes these non-latching relays perfect for push-button applications such as keyboards and micro-controller input buttons.
