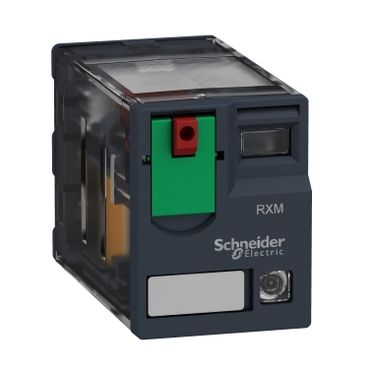

Schneider Electric RXM Series Miniature Relays with LED

Schneider Electric Plug In Power Relay, 230V ac Coil, 8A Switching Current, 4PDT The compact Zelio RXM miniature relays with LED from Schneider Electric can be used to increase the functions in electrical enclosures, particularly useful for industrial applications, machine/building equipment and HVAC. Features & Benefits Range of miniature plug-in relays on base, RXZE2 type Simple to use- no adjustment required for standard applcations Easily integrated into current devices & can be adapted for all voltages Test button and mechanical indicator of relay status Bases for assembly on DIN rail or with screws to be ordered separately What is a non-latching relay and how do they work? A relay is an electrical switch that is operated by electrical pulses, their primary function is to open and close a circuit. When power passes through a circuit, a relay switches position (usually from NC to NO) using an internal coil which generates a magnetic force. This force then holds the relay in a NO position, when the current is switched off the relay returns to the NC position. This function is what makes these non-latching relays perfect for push-button applications such as keyboards and micro-controller input buttons. Specifications Attribute Value Coil Voltage 230V ac Contact Configuration 4PDT Mounting Type Plug In Switching Current 8A Number of Poles 4 Latching No Terminal Type Plug In Maximum Switching Voltage AC 250V Length 21mm Coil Resistance 15000Ω Coil Power 1.2W Height 27mm Life 100000 cycles Minimum Operating Temperature -40°C Standards Met CE, CSA, EN/IEC, GOST, Lloyd's, REACH, RoHS Compliant, UL Better World Product Yes Contact Material Silver Alloy Series Harmony Relay RXM Maximum Operating Temperature +55°C Depth 47.7mm Maximum Switching Power DC 168 W Better World Verification Green Premium Maximum Switching Power AC 1.5 kVA
