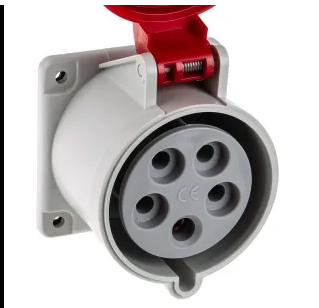

Scame *Scame IP44 Red Panel Mount 3P+N+E Industrial Power Socket, Rated at 32.0 A, 415.0 V

Manufacturer: Scame Mfr. Part No.: 423.327 This heavy-duty power socket from Scame is a good choice for hardworking settings like workshops and warehouses. It's fitted with a protective socket cover and tough mounting flange, making it well-suited to harsh industrial environments. An IP44 rating assures you it's splash-proof, so it won't suffer damage from contact with liquids or chemicals. The connector has been colour-coded red to indicate a voltage rating in the 380 V - 480 V range (this Scame socket is rated at 415 V). It's a 3-pin plus neutral plus earth female connector and has a current rating of 32 amps. This model is designed for panel mounting and has a straight body for easy installation. The connector is terminated with a screw. Part of the Scame range, this socket has been tested by engineers for quality and reliability. It conforms to the RoHS directive on the use of hazardous substances. Features and Benefits • Industrial power connector • 3-pin plus neutral plus earth • Panel mounting • Female socket • Termination via screw • Includes a mounting flange measuring 75 mm x 75 mm • Colour-coded red • Voltage rating of 415 V • Current rating of 32 A • IP44 rated as splash-proof • Working frequency of 50 Hz to 60 Hz • Straight body orientation • Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 • RoHS compliant for hazardous substances Specifications Attribute Value Current Rating 32A Plug/Socket Socket Pole Format 3P+N+E Voltage Rating 415 V Mounting Type Panel Mount IP Rating IP44 Colour Red Gender Female Body Orientation Straight Termination Method Screw
