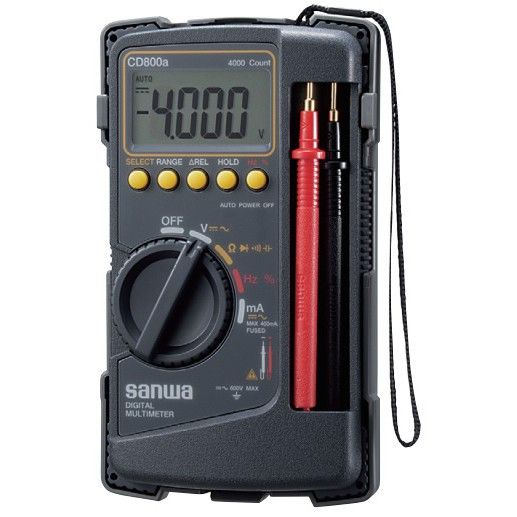

SANWA CD-800A DIGITAL MULTIMETER

APPLICATIONS AND FEATURES This instrument is portable multimeter designed for the measurement of low-voltage circuit. This is used at small communications equipments, home electric appliances, voltage of lump line, and measurement of various types of batteries. - 4000 count - Sharp contrast LCD with character 17.5mm high is used - Solid & protective body cover that can also be used as a tilt stand - Frequency, capacitance, and duty cycle measurement function Sanwa CD800a Digital Multimeter Basic Feature:- Integrated case suitable for use and storage 3-3/4 digits 4000 Count Auto Power-off (Enable or Disable) Captive test leads prevent confusion of measurement polarity Conforms to IEC61010 and CAT III 600V Max Specification :- ?3-3 / 4 digits 4000 count ?0.7% best accuracy ?Capacitance measurement ? Not suitable for measurement of condensers with large leak current. ?Frequency measurement (AC sine wave only) ?Data hold / Range hold ?Relative value ?Auto power off (30min.) (cancelable) ?Low power ohm (input voltage 0.4V) at continuity range ?Solid & protective body cover that can also be used as a tilt stand ?Chip holder behind the body cover Display : numeral display 4000 Sampling rate : 3 times / sec. AC frequency bandwidth : 40?400Hz
