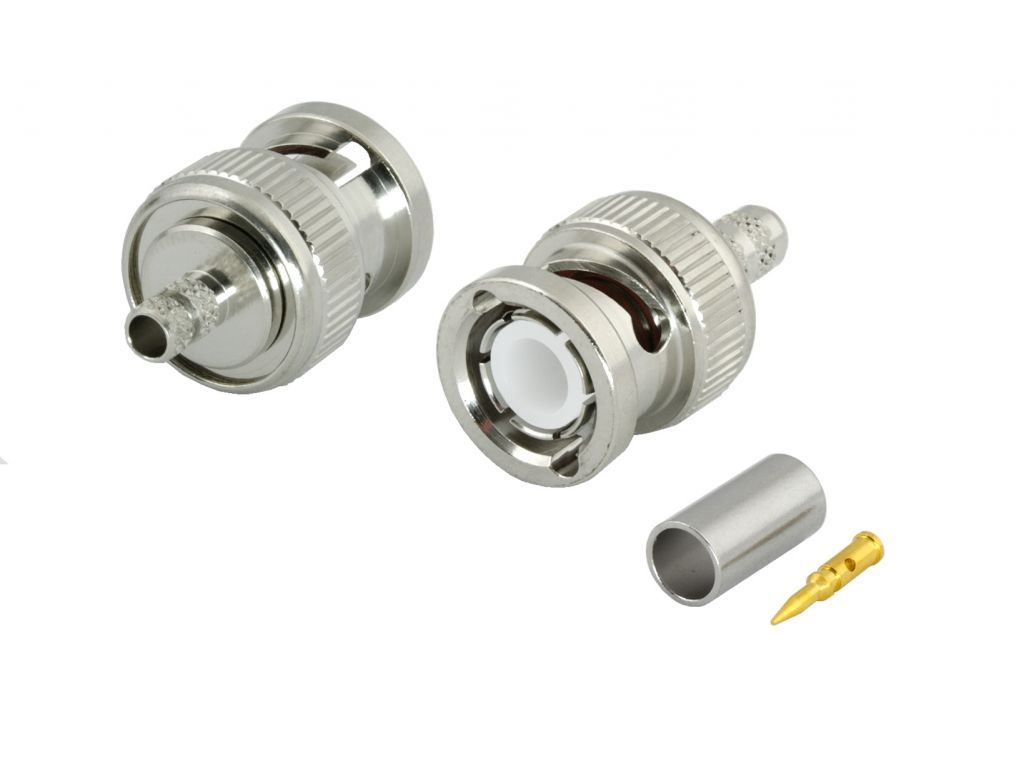

RS PRO *RS PRO BNC Coaxial Connector - 546-3793

RS PRO 50Ω Straight Cable Mount, BNC Connector , Plug, RG178/U From RS PRO, these BNC coaxial connectors are designed for use with RG-178/U coaxial cables, and feature an easy-to-terminate cable crimp design. The connector has a robust nickel plated body, and features the secure and convenient bayonet coupling system typical of a BNC connector. The centre pin contact is gold plated, for excellent conductivity over a long service life, and there is also a PTFE insulator for increased reliability. Features and Benefits • BNC plug • Nickel plated body provides a heavy-duty build quality • Gold contacts ensure maximum efficiency • Crimp termination method • 50 Ω impedance • Operating frequency of 4GhZ • Insulation material: PTFE • Normal polarity Applications BNC connectors are used in a variety of RF signal applications. Though they are most commonly used in radio and television broadcast applications, they can also be used in medical and test equipment. • Antenna connection • Cable Modems • Telecom • Medical Equipment • Satcom • CCTV Attribute Value Coaxial Connector Type BNC Connector Gender Male Mounting Type Cable Mount Impedance 50Ω Termination Method Crimp Body Orientation Straight Cable Type RG178/U Bulkhead No Body Plating Nickel Polarity Normal Contact Material Copper Contact Plating Gold
