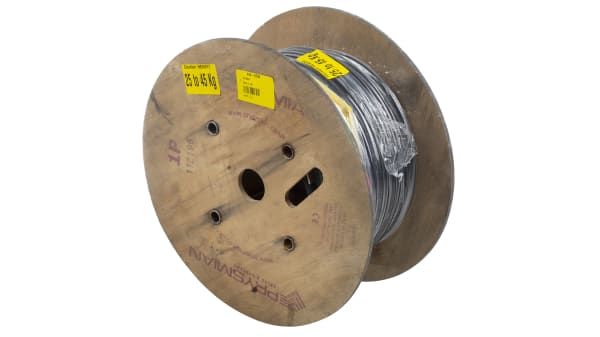

Prysmian *Prysmian 3 Core Black Armoured Cable With Low Smoke Zero Halogen (LSZH) Sheath , SWA Galvanised Steel Wire, 56 A, 50m (20301536)

Afumex BS6724 LSZH Armoured Cable Brought to you by Prysmian, this series of Afuxmex 90 steel wire armoured cable is an excellent choice for harsh environments. Designed for supply leads for medium duty domestic and office appliances, the choice doesn't end there. As a hard-wearing and durable SWA cable is essential for many applications. An excellent resistance to ignition and flame conforms to health and safety standards, due to the very low levels of smoke which would be produced. All models are highly reliable and excellent quality. Features and Benefits • BASEC Approved • Stranded annealed copper to BS EN 60228 • Low smoke to BS7622 • Temperature rating: -15 to +90°C • Halogen free, BS EN 50267-2-1, BS EN 50267-2-3 Standards BS6724 Number of Cores 3 Cross Sectional Area 6 mm² Current Rating 56 A Reel Length 50m Sheath Material Low Smoke Zero Halogen (LSZH) Voltage Rating 1 kV Outer Diameter 15.2mm Armour Construction Galvanised Steel Wire Insulation Material PEX Minimum Bend Radius 6 x D Minimum Operating Temperature -25°C Maximum Operating Temperature +90°C Cable Shape Multicore Conductor Resistance 3.08 Ω/km Sheath Colour Black Conductor Material Annealed Copper Conductor Strand Type Stranded
