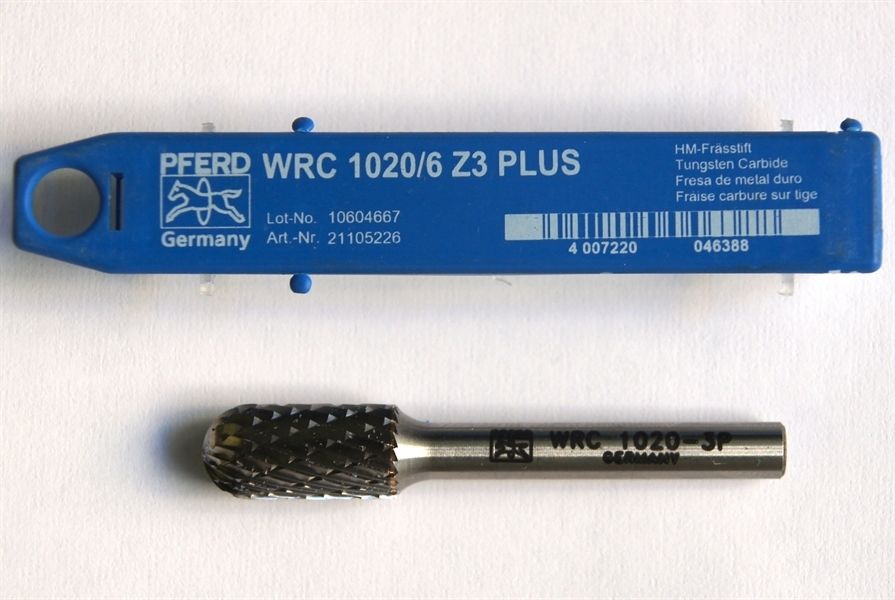

Pferd General Use Tungsten Carbide Burr cylindrical radius end, #3P, 10 x 20 x60mm

PFERD tungsten carbide burrs are designed for matching materials of virtually any strength. Their superior performance reflects an optimum combination of key parameters such as shape, number of flutes, spiral angle, rake angle and concentricity. Cylindrical burr with radius end according to DIN 8032 with cut conforming to DIN 8033. Combination of cylindrical and ball-shaped geometries. Technical information Outer dia. 10 mm Width 20 mm Shank dia. 6 mm Overall length 60 mm Cut 3 PLUS Packing unit 1 pcs. Materials that can be worked: Hard aluminium alloys High-temperature-resistant materials Cobalt-based alloys Other non-ferrous metals Nickel-based alloys (e. g. Inconell and Hasteloy) Stainless steel (INOX) Cast iron Grey/nodular cast iron (GG/GJL, GGG/GJS) Annealed cast iron Black cast iron (GTS, GJMB) White annealed cast iron (GTW, GJMW) Steel, cast steel Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC) Case-hardened steels Tool steels Steel Steels up to 1,200 N/mm² (< 38 HRC) Cast steel Applications: Milling out Leveling Deburring Cutting out holes Surface work Milling Weld dressing Drive types: Flexible shaft drive Straight grinder Stationary machines Robot applications Machine tool Made in Germany General-use shape (combination of cylindrical and ball shapes). Cylindrical shape with radius end according to DIN 8032 with cut conforming to DIN 8033. PFERD tungsten carbide burrs are designed for machining materials of virtually any strength. The perfect combination of tungsten carbide, shape and cut geometry and, if required, coatings, make this possible. Advantages The high concentricity: Allows the operator to work more safely Reduces tool drive wear Provides smooth operating action Prevents chatter marks Increases tool life and stock removal performances PFERD burs are internationally known for highest possible levels of concentricity and consistency. The resulting balance and performance provides many user advantages.
