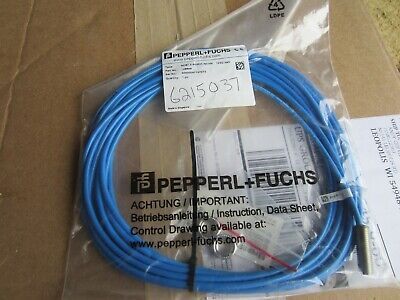

Pepperl+Fuchs Inductive sensor NCB1,5-8GM25-N0
Pepperl+Fuchs Inductive sensor NCB1,5-8GM25-N0 is a electrical test equipment product from Pepperl+Fuchs, available at wholesale B2B prices on Lapasar Mall. Buy online with tiered volume pricing, business credit terms and fast delivery across Malaysia.
Brand: Pepperl+Fuchs
SKU: 413357
Category: Electrical Test Equipment > Inductive Sensors
Price: RM 1486.80
Dealer Price: RM 1486.80 (for bulk orders)
Availability: 3-7 days
Product Description
Manufacturer : Pepperl+Fuchs NCB1,5-8GM25-N0 Inductive sensor NCB1,5-8GM25-N0 1.5 mm flush Switching function : Normally closed (NC) Output type : NAMUR Rated operating distance : 1.5 mm Installation : flush Assured operating distance : 0 ... 1.215 mm Actual operating distance : 1.35 ... 1.65 mm typ. Reduction factor rAl : 0.3 Reduction factor rCu : 0.2 Reduction factor r304 : 0.7 Nominal ratings Nominal voltage : 8.2 V (Ri approx. 1 kΩ) Switching frequency : 0 ... 2000 Hz Hysteresis : 1 ... 10 typ. 3 % Reverse polarity protection : reverse polarity protected Short-circuit protection : yes Suitable for 2:1 technology : yes , Reverse polarity protection diode not required Current consumption Measuring plate not detected : min. 3 mA Measuring plate detected : ≤ 1 mA Switching state indicator : LED, yellow Functional safety related parameters MTTFd : 3590 a Mission Time (TM) : 20 a Diagnostic Coverage (DC) : 0 % Compliance with standards and directives Standard conformity NAMUR : EN 60947-5-6:2000 IEC 60947-5-6:1999 Approvals and certificates FM approval Control drawing : 116-0165 UL approval : cULus Listed, General Purpose CSA approval : cCSAus Listed, General Purpose CCC approval : CCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature : -25 ... 100 °C (-13 ... 212 °F) Storage temperature : -40 ... 100 °C (-40 ... 212 °F) Mechanical specifications Connection type : cable PVC , 2 m Core cross-section : 0.14 mm2 Housing material : Stainless steel 1.4305 / AISI 303 Sensing face : LCP Housing diameter : 8 mm Degree of protection : IP67 Cable Bending radius : > 10 x cable diameter General information Use in the hazardous area : see instruction manuals Category : 1G; 2G; 3G; 1D
Product Features
- Quality assured industrial and office supplies
- Available for B2B wholesale purchase
- Genuine Pepperl+Fuchs product
- Fast delivery across Malaysia
- Competitive wholesale pricing for businesses
Specifications
| Brand | Pepperl+Fuchs |
|---|---|
| Part Number (SKU) | 413357 |
| Category | Electrical Test Equipment |
| Weight | 2 kg |
| Lead Time | 3-7 days |
Relevant Industries
- Oil & Gas
- Energy & Utility
- Healthcare
- Food & Beverage
- IT & Technology
Frequently Asked Questions
Is Pepperl+Fuchs Inductive sensor NCB1,5-8GM25-N0 a genuine Pepperl+Fuchs product?
Yes. Lapasar Mall supplies genuine Pepperl+Fuchs products with manufacturer warranty, sourced through verified suppliers.
Can I buy Pepperl+Fuchs Inductive sensor NCB1,5-8GM25-N0 in bulk at wholesale prices?
Yes. Pepperl+Fuchs Inductive sensor NCB1,5-8GM25-N0 is available for B2B purchase on Lapasar Mall with tiered pricing that improves with order value. You can also request a custom quotation for project or contract volumes.
Do you offer credit terms for Pepperl+Fuchs Inductive sensor NCB1,5-8GM25-N0?
Approved business buyers can access credit terms of 30, 45, or 60 days on Pepperl+Fuchs Inductive sensor NCB1,5-8GM25-N0 and other products. Apply with your business registration and trade references to buy now and pay later.
How fast is delivery for Pepperl+Fuchs Inductive sensor NCB1,5-8GM25-N0 in Malaysia?
Standard delivery is typically 3-7 business days across Peninsular Malaysia and 7-14 business days to East Malaysia, with express options on urgent orders.
Order Now
Ready to order Pepperl+Fuchs Inductive sensor NCB1,5-8GM25-N0? View product details and add to cart for fast delivery to your business.
For bulk orders and dealer pricing, register a business account today.
