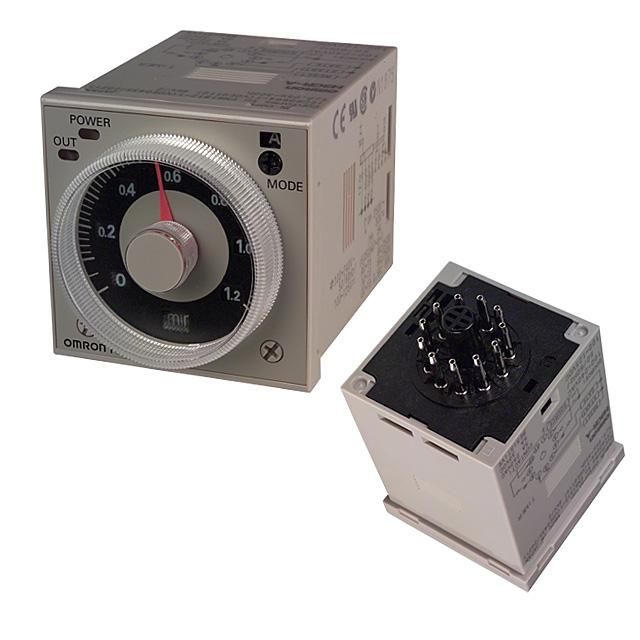

Omron Multi-function Timer Relay - H3CR-A

Manufacturer: Omron Mfr. Part No.: H3CR-A AC24-48/DC12-48 Type :- Omron DIN Rail, Panel Mount, Surface Mount Multi Function Timer Relay, 12 → 48 V dc, 24 → 48V ac, 0.05 s The Omron H3CR series multi-function timer relay is solid-state, compact equipment with high precision and a wide range of programming features. It performs different delay functions like flicker off start, flicker on start, interval, ON delay, signal OFF delay and signal on/OFF delay ranging between 0.05 seconds to 300 hours. This timer has intuitive programming, which makes it easy to use and quick to configure. It is affordable. Its high performance makes it ideal for a wide range of applications in process control environments. Features and Benefits Wide power supply range reduces the number of timer models required The supply voltage ranges is 14VAC to 48VAC and 12VDC to 48VDC 2 changeover relay output contacts of 5A Ecological design with reduced power consumption 11-pin terminal model Enables easy sequence checks through instantaneous outputs for a zero set value at any time range When panel-mount with a socket, length is 80mm or less Time setting rings enable consistent settings and limit the setting range DPDT contact configuration Panel covers enable various panel designs Rich variety of inputs like start, reset and gate functions Features and Benefits Textiles Chemical industry Mining Irrigation Raw material handling Food and beverages Industrial process control Certifications UL approved CSA certified Lloyds/NK approval EN61812-1 certified IEC60664-1 certified Applications UL, CSA. Conforms to EMC standards. Specifications Attribute Value Supply Voltage 12 → 48 V dc, 24 → 48V ac Mounting Type DIN Rail, Panel Mount, Surface Mount Number of Contacts 2 Time Range 0.05 s → 300h Mode of Operation Flicker OFF Start, Flicker ON Start, Interval, OFF Delay, ON Delay, ON/OFF Delay, One Shot Output Number of Timer Functions Multi Function Time Increment Hours, Seconds Maximum Voltage 125 V dc, 250V ac Maximum Current 5A Series H3CR Power Supply External Terminal Type 11-Pin Connector Length 48mm Width 48mm Maximum Operating Temperature +55°C Switch Configuration DPDT Depth 81.6mm Minimum Operating Temperature -10°C Time Delay 0.1s
