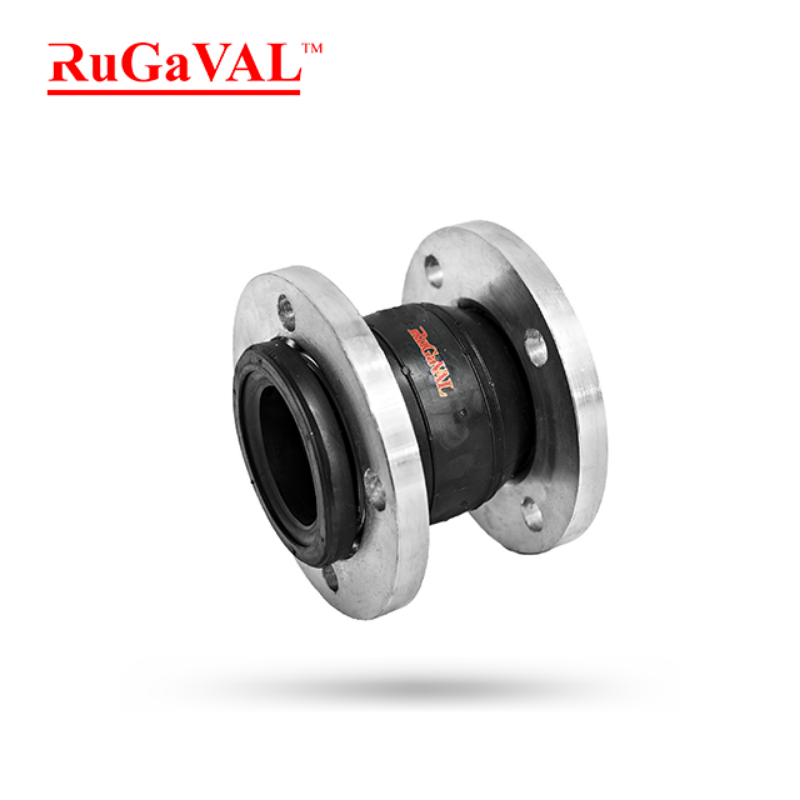

OEM Rubber Bellow, Single Sphere c/w JIS10k MS Flange, Size: 2-1/2" (DN65), Rubber Flexible Joint, Rubber Expansion Joint

RUBBER FLEXIBLE JOINT, RUBBER BELLOW, SINGLE SPHERE C/W JIS 10K MS FLANGE SIZE: 2-1/2" x 150mm L (DN65) Product Details: RUGAVAL TS SERIES Protect pumps from temperature and pressure changes, and reduce noise and vibration. Our TS SERIES joint/flexible connector handles up to 225 PSI and -20 degree C to 100 degree C, vacuum rating to 650mm/Hg. The TS SERIES is the most widely applied expansion joint/flexible connector in the industry today. It provides the greatest pressure, temperature and movement, at a very reasonable cost. The TS SERIES resiliency also helps control pulsation shocks and noise transmission. Constructed of elastomer materials like EPDM, NBR and Neoprene, SBR for your specifications, the spherical shape allows pressure to exert itself uniformly in all directions, thus reducing the force exerted on pipe lines and equipment. Bias-ply tire cord provides strength, a high safety factor, and low force to move. Precision molding provides a dense, uniform carcass. Solid plate steel flanges grip the sealing area and provide a fluid tight connection. All flanges are tapped or drilled to mate with companion flanges, we have standard BS, PN16, PN10, ANSI150, JIS10K and others. The tapped bolt holes and rotatable flanges make installation easy. The arch is self-cleaning, thus eliminating the need for filled arch when solids are present in the stream.
