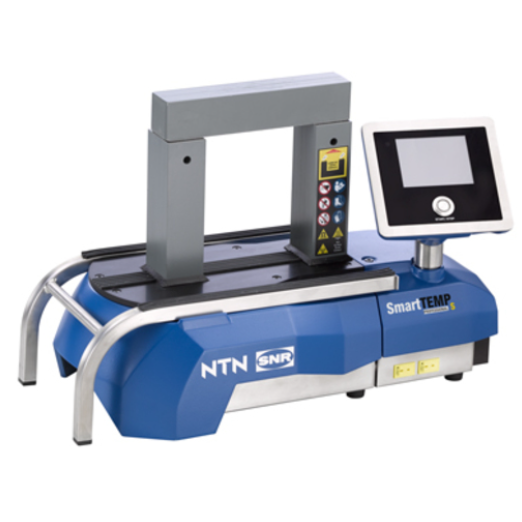

NTN TOOL SMART TEMP S / TEMP M INDUCTION HEATER - SNR

Smart TEMP S -Portable induction heater. -Combines all the features of the SmartTEMP range in a compact device. -Lightweight and easy to use, can heat a part weighing up to 50 kg. BENEFITS • Small, light heater: weighs only 21 kg. 230 V/13 A power supply. • High performance: Designed for all bearings and rotating parts with a bore diameter above 10 mm with a maximum diameter of 400 mm and a maximum weight of 50 kg. • Safe: 4 heating modes: Time, Ramp, Temperature (1 sensor), Temperature (2 sensors). Second sensor optional. • Easy to use: Interactive touch screen enabling precise control of the device (heating settings and graphics). Several languages available. • Extraction of heating data (USB). Smart TEMP M -Induction heater with pivoting yoke, a best-seller for maintenance or production workshops, which can heat a bearing weighing up to 100 kg. BENEFIT • Used as fixed equipment. 230 V/16 A power supply. • It is compact, weighing only 40 kg, and can be easily moved using its 2 side handles. • High performance: Designed for all bearings and rotating parts with a bore diameter above 10 mm with a maximum diameter of 500 mm and a maximum weight of 100 kg. • Safe: 4 heating modes: Time, Ramp, Temperature (1 sensor), Temperature (2 sensors). Second sensor optional. • Easy to use: Interactive touch screen enabling precise control of the device (heating settings and graphics). Several languages available. • Extraction of heating data (USB). • Ergonomic with its standard pivoting yoke which facilitates the loading of the parts to be heated.
