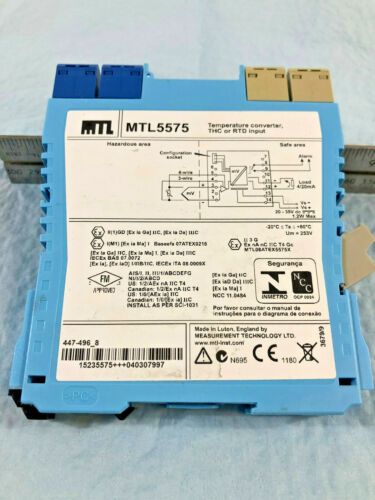

MTL Eaton MTL Temperature Converter Zener Barrier, 20mA Maximum Current, 1 Channel - MTL5575

Manufacturer: MTL Mfr. Part No.: MTL5575 MTL 1 Channel Zener Barrier, Temperature Converter, RTD, Thermocouple Input, Current, Relay Output, ATEX The MTL5500 series is the latest generation of MTL isolators. Incorporating advanced circuit design and innovative isolating transformer construction. The compact 16mm wide design reduces weight and gives a high packing density and reduction in power consumption. They build on the success of the MTL5000 series to bring the benefits of galvanic isolation with exceptional design and reliability.,II (I) GD (Ex ia) IIC,IECEx, ATEX (Baseefa) FM, CSA Features and Benefits 3-Port Isolation High Packing density Low power dissipation Multi-channel I/O modules Compatible with preceding MTL5000 series Assessed for Functional safety IEC61508 applications Required EX numbers and information displayed on cover where applicable Use this Zener barrier from Eaton MTL with a temperature sensor in a hazardous location. It converts electrical signals to current levels that are safe for a connected instrumentation device. For versatility, the unit is compatible with both thermocouples and RTDs (resistance temperature detectors). An integrated alarm output notifies you if the preset temperature limits have been reached, allowing you to act quickly. Thanks to its maximum current consumption of 50mA at 24V, this device is energy-efficient. You'll commonly find it used in industrial automation applications. • LED indicators display operating status for ease of monitoring • Rapid response time of 500ms for fast operation • Low power dissipation of 1.2W ensures minimal energy loss • Designed for DIN rail mounting for quick and simple installation • Broad operating temperature range between -20°C and +65°C for use in demanding environments How do I configure this Zener barrier? You can configure this device by connecting it to your computer and setting up the compatible MTL PCS45 software with a PCL45USB serial interface. This lets you adjust the parameters for the thermometers and RTDs and set the alarm output to low-process or high-process. Specifications Attribute Value Barrier Type Galvanic Barrier Number of Channels 1 Supply Voltage 20 → 35V dc Module Type Temperature Converter Input Signal Type RTD, Thermocouple Output Signal Type Current, Relay Maximum Current 20mA Minimum Operating Temperature -20°C Maximum Operating Temperature +60°C Safety Current Maximum 20mA Safety Current Resistance 600Ω Hazardous Area Certification ATEX
