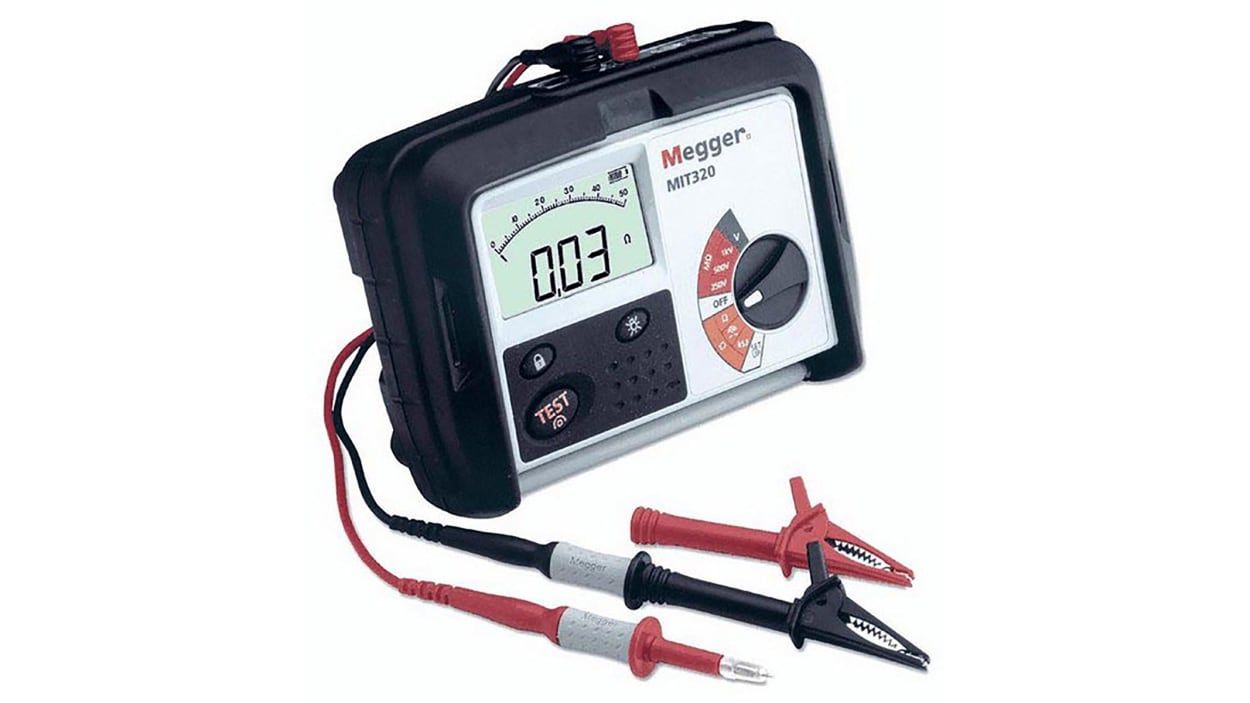

MT320, MEGGER Megger MIT320, Insulation & Continuity Tester, 1000V dc, 999M?, CAT III 600V

Megger Insulation and Continuity Testers The Megger 999 Mohm, 200mA insulation and continuity tester are not only durable and easy to use but also incorporates a comprehensive set of features designed to ensure operator safety, even under conditions of accidental misuse. It includes automatic discharge of the circuit after the testing, audible and visual warning if the test probes are applied to a live circuit and a test inhibit feature, which operates automatically under live circuit conditions. This device has rugged construction with an impact-resistant rubber-over moulded case and innovative circuitry, which guarantees high accuracy, combined with the stability of calibration. Supplied with instructions, 2 wire test lead set with crocodile clips, 8 x AA alkaline batteries, neck strap and carry case. Features and Benefits 250V to 1000V test voltage Extremely easy to use Tough rubber armoured case Self-contained protective cover Live circuit warning Intelligent safety system for protection Result storage and downloading USB interface Backlit display, illuminated range panel, insulation limit alarm, resistance measurement and an adjustable threshold for the continuity buzzer Applications Domestic sites Commercial sites Industrial sites Certifications BS7671 IP54 rated IEC61010-1 Tester Type Insulation & Continuity Tester Minimum Test Voltage 250V Maximum Test Voltage 1000V dc Maximum Insulation Resistance Measurement 999MΩ Display Type LCD Test Current 1mA Battery Life 5000 5-Second Tests Minimum Operating Temperature -10°C Maximum Operating Temperature +60°C Power Source Battery Safety Category Level CAT III Safety Category Voltage 600V Safety Category CAT III 600V Model Number p MIT320 Plug Type Type G - British 3-pin Weight 980g Length 203mm Battery Type AA Height 78mm Dimensions 203 x 148 x 78mm Width 148mm
