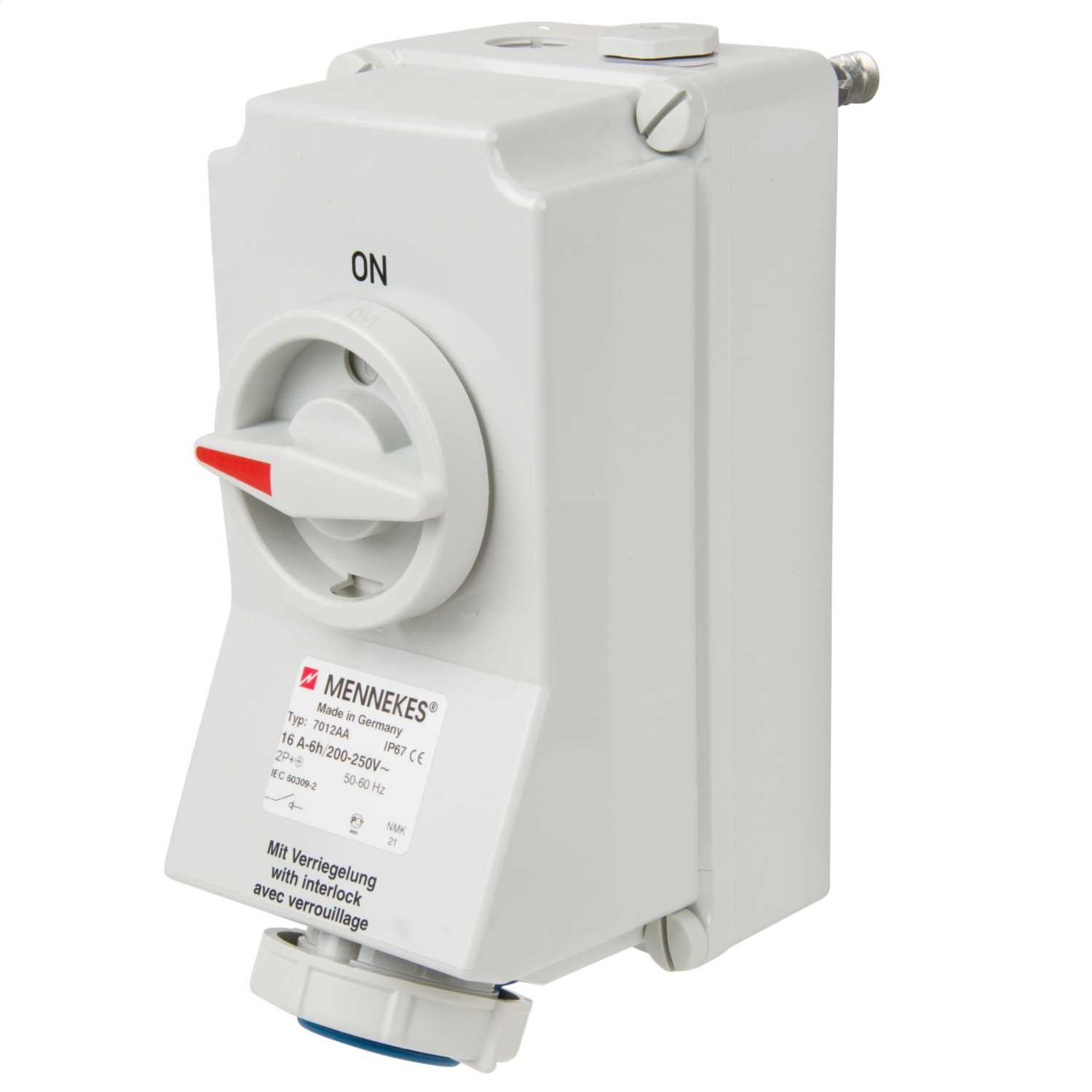

MENNEKES Switchable IP67 Industrial Interlock Socket 16A

MENNEKES Switchable IP67 Industrial Interlock Socket 2P+E, Earthing Position 6h, 16A, 230 V Vertical Fully interlocked switched (phase) sockets give enhanced electrical safety. Switch cannot be energised until the plug is inserted Plug cannot be withdrawn with the switch in the ON position, which prolongs contact life 16A - 63A can be padlocked in the OFF position Housings are moulded from thermoplastic materials, giving insulation, strength and durability properties Continuous polyurethane gasket between lid and base Neutral block must be removed first before fitting auxillary contact block * Has metric threads on mounting box cable entries Standards BS4343 (IEC/EN 60309-2) Specifications Attribute Value Plug/Socket Socket Pole Format 2P+E Switchable Yes Colour Blue IP Rating IP67 Voltage Rating 230 V Current Rating 16A Body Orientation Straight Dimensions 252 x 118 x 144mm Earthing Position 6h Body Material Thermoplastic Depth 144mm Length 252mm Width 118mm
