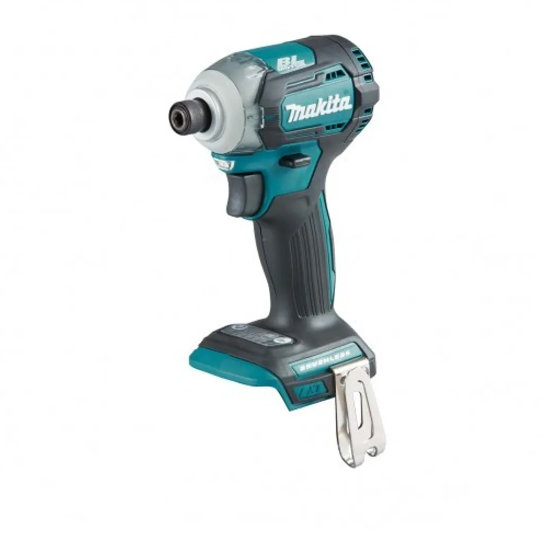

MAKITA CORDLESS IMPACT DRIVER DTD170RFE

TECHNICAL DATA Voltage: 18 V Capacity: • Machine Screw: M4 - M8 (5/32" - 5/16") • Standard Bolt : M5 - M16 (3/16" - 5/8") • High Tensile Bolt: M5 - M14 (3/16" - 9/16") • Coarse Thread (in length): 22 - 125 mm (7/8" - 4-7/8") Hex Shank: 6.35 mm (1/4") Impacts Per Minute: • Max: 0 - 3,800 IPM • Hard: 3,600 IPM • Med: 2,600 IPM • Soft: 1,100 IPM • T mode: 2,600 IPM Max Fastening Torque: 175 N.m (1,550 in.lbs.) No Load Speed: • Max: 0 - 3,600 RPM • Hard: 3,200 RPM • Med: 2,100 RPM • Soft: 1,100 RPM • T mode: 3,600 RPM Dimensions (L x W x H): 117 x 79 x 236 mm Net weight: 1.2 - 1.5 kg SCOPE OF DELIVERY • Cordless Impact Driver • Belt Clip RFE: 1 x Rapid Charger & 2 x 3.0Ah Battery 12 MONTHS MAKITA WARRANTY MAKITA CORDLESS IMPACT DRIVER DTD170 RFE Makita Power Tools - Makita Cordless Impact Driver DTD170RFE The new Makita DTD170 impact driver is technically a 6-function impact driver, with four speeds and matched impact power: then the newly introduced operating mode, 'T-Mode' is used for tightening self-drilling Tek screws and the new A-Mode (Assist mode) which, when selected starts the rotation slowly allowing maximum control of the screw as it starts to bite into the material. Once the impact driver detects the screw tightening it switches to full speed and full impact power to complete the tightening sequence. The A-Mode is designed to eliminate ‘screw cam-out’ and ‘cross threading’ caused by high speed rotation before the screw bites in the material. The new Makita DTD170 generates a massive 175 Nm maximum tightening torque with four impact speeds and power stages ranging from soft setting of 1100 rpm and 1100 impacts per minute; through medium and hard setting levels up to a maximum of 3,600 rpm and 3,800 ipm. This impact driver handles high strength bolts up to M14 and 22x125mm coarse thread screws. In line with all new Makita tools the performance increases whilst the overall size of the machines decreases. The new top-of-the-range Makita DTD170 impact driver has a compact overall body length of just 117mm. • ULTRA-COMPACT and perfect balance at only 117mm long for maximum control and maneuverability • BL motor efficiently uses energy to match torque and RPM to the changing demands of the application • Dual LED lights with preglow and afterglow functions and an independent on/off switch illuminate the work area • 3-Stage battery gauge indicates battery charge level • 6-Mode operation for A-mode / T-mode / Max / Hard / Medium / Soft impact mode for multiple applications
