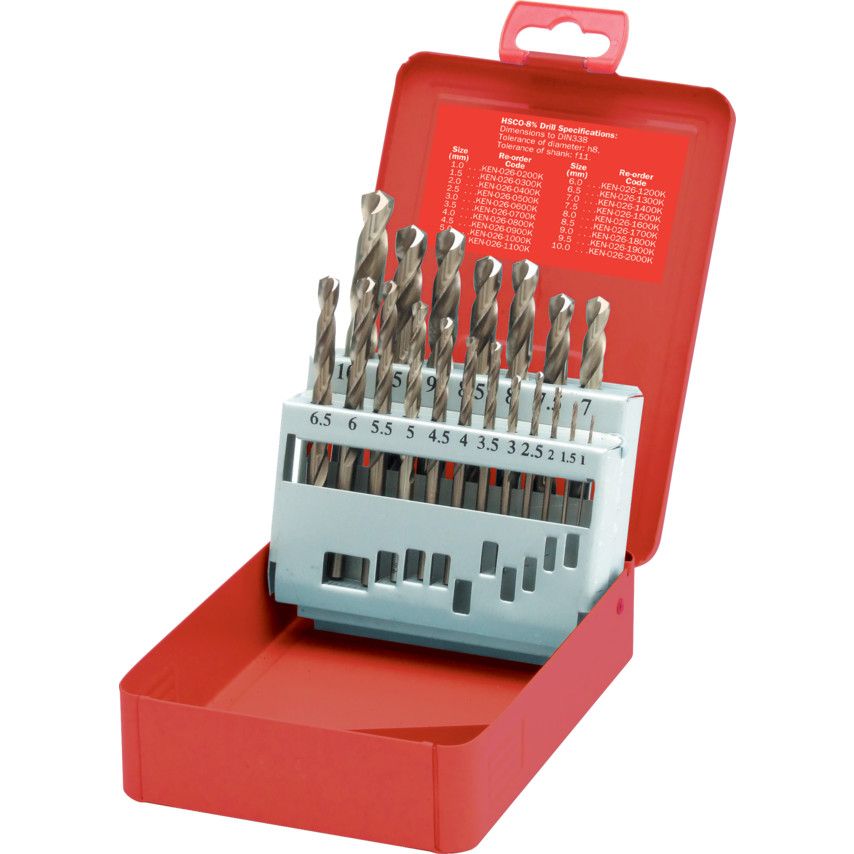

Kennedy *Kennedy HSS-Co Metric Jobber Drill Set - 19 Pieces (KEN0268460K)

Maker : Kennedy Model No. : KEN0268460K A 19 piece metric heavy duty drill set made of 5% cobalt material with excellent heat resistance. Ideal for drilling steels with tensile strength up to 1,400 N/mm2, very hard bronze, stainless steels as well as heat and acid resistant steels. The high speed steel and cobalt construction allows for greater rigidity when cutting through harder materials. Features and Benefits • Manufactured from high speed steel with 5% cobalt for added strength • Excellent heat and wear resistance for prolonged tool lifespan • Supplied in a robust carry case for easy portability and storage Contents • Set contains 1x 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5 and 10.0 mm drills Specifications • Point angle: 135° • Helix angle: normal • Web thickness: strengthened • Relief angle: normal • Tolerance of diameter: h8 • Tolerance of shank: f11 • Supply unit • All diameters - 1 pc • Manufacturing Standard: BS 328, DIN 338B Typical Applications • Drilling • Steel • Hard bronze • Stainless steels Specification Property Value Brand Kennedy Case Type Metal Case [txt] Cutting Direction Right Hand [txt] Diameter Range 1.0mm to 10.0mm by 0.5mm Increments [txt] Drill Length Type Standard Length [txt] Drill Size Included 1.0; 1.5; 2.0; 2.5; 3.0; 3.5; 4.0; 4.5; 5.0; 5.5; 6.0; 6.5; 7.0; 7.5; 8.0; 8.5; 9.0; 9.5; 10.0 mm EAN13 Barcode 5036140072763 eCl@ss Code 21010101 Finish/Coating Bronze [-] Flute Construction Ground Flute [txt] Material Cobalt High Speed Stee [txt] Maximum Drill Size 10.00 mm Minimum Drill Size 1.0 mm Number of Pieces 19 [#] Overall Depth 34 Overall Length 154 Overall Weight 0.62 Overall Width 111 Size Increment 0.5 mm Standards Met BS 328;DIN 338B [txt] Supplier Part No. 0268460K System of Measurement Metric [txt] UNSPSC Code 23241634 Further Information Property Value Case Type Metal Cutting Direction Right Hand Drill Length Type Standard Length Drill Size Included 1mm to 10mm x 0.5mm Finish/Coating Bronze Flute Construction Ground Flute Material Cobalt High Speed Steel Maximum Drill Size 10 mm Minimum Drill Size 1 mm Number of Pieces 19 Size Increment 0.5 mm Standards Met BS 328; DIN 338B System of Measurement Metric
