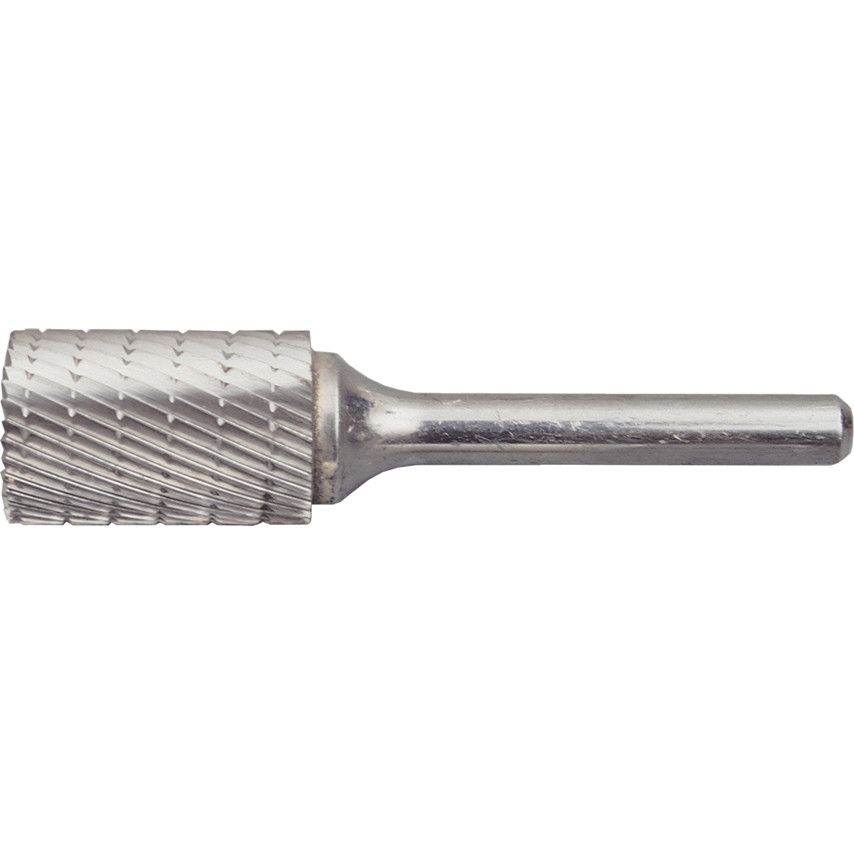

Kennedy Carbide Burr, Uncoated, Chipbreaker, 6.0mm, Cylindrical End Cut

Specification Property Value Brand Kennedy Cut No. 9 [#] Cut Type Chipbreaker [-] EAN13 Barcode 5036140099135 eCl@ss Code 21010101 Finish/Coating Uncoated [txt] Head Diameter 6 mm Head Length 12 mm Head Material Carbide [txt] Head Shape Cylindrical End Cutting [txt] Included Angle N/A [txt] Overall Length 45 mm Shank Diameter 3 mm Supplier Part No. 2100120K UNSPSC Code 23251706 Further Information Property Value Cut Type Chipbreaker Finish/Coating Uncoated Head Diameter 6 mm Head Length 12 mm Head Material Carbide Head Shape Cylindrical End Cut Overall Length 45 mm Shank Diameter 3mm Cylindrical End Cut Carbide Burrs These carbide burrs are designed for cylindrical end cutting of low feed, high speed materials. Available in a variety of sizes with varying cut capabilities. Features and Benefits • Manufactured from durable carbide for tool longevity • Rapid cut (Cut 3) burrs are suited for use on softer non-ferrous and plastic materials • Chipbreaker (Cut 9) burrs are suited for use on cast iron, carbon steel, alloy steel 50RC and 60RC • Suitable for deburring and polishing of cast iron, cast steel, carbon steel, alloy steel and stainless steel up to HRC65 hardness • Ideal for light stock removal at high rpms Typical Applications • Deburring Notes • Not suitable for milling large amounts of material • Always ensure that at least 70% of the shank length is clamped by the collet or chuck of the tool being used • Always ensure that the tool is rated to the recommended operating speed of the burr
