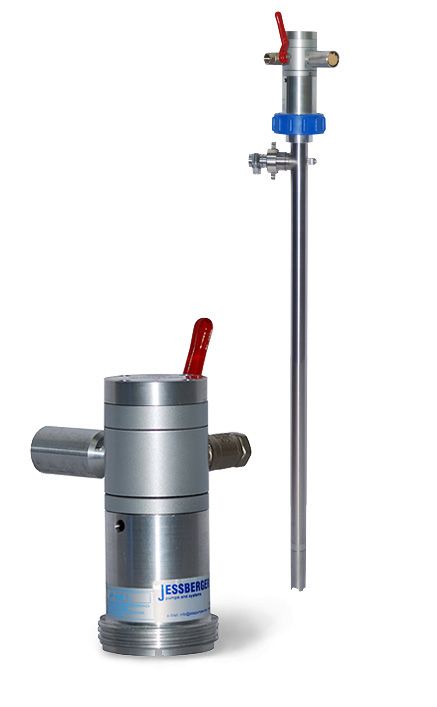

JESSBERGER AIR OPERATED MOTOR JP-AIR1

Laboratory pump set (without ATEX) Pump & Motor Only 300 Watt, max operating pressure 6 bar The drive JP-AIR 1 is a compactly built, elegant designed air operated motor with an aluminium housing. The lightweight, handy and powerful device can be used as drive for the laboratory and drum pump tubes and is suitable in this combination for many thin liquid, neutral and aggressive media. Flammable media are not allowed to be transferred with the laboratory pump tubes made of stainless steel cause of missing ATEX certification. The sophisticated, technically clear structure ensures an efficient and safe use when transferring various media. The air operated drum pump motor is characterized beside its light weight (2 kg) by its ease of use. The non-stationary and stationary usable drive is particularly suitable for intermittent operation. Via the included ball valve the compressed air can be dosed at the air inlet, and thereby the rotational speed of the motor. Therefore the flow rate of the pumped media can be adjusted to the users requirements. The maximum operating pressure is 6 bar. The included silencer ensures a low noise level. The air consumption of the engine is under load 13 l/sec. The maximum density of the media is for the air operated motor JP-AIR 1 1.3, the maximum viscosity 400 mPas. Specifications JP-140 Flow rate (with hose and oval gear meter) Ø 25 mm up to 18 l/min* Ø 28 mm up to 33 l/min* Ø 32 mm up to 42 l/min* Head Ø 25 mm up to 5 m* Ø 28 mm up to 6 m* Ø 32 mm up to 8 m* Viscosity up to 400 mPas* Density up to 1,3* * All physical data are real measured maximum values. * Test medium water 20 °C, 2 m pressure pipe 1″, oval gear meter 1″, measured values: ± 5%
