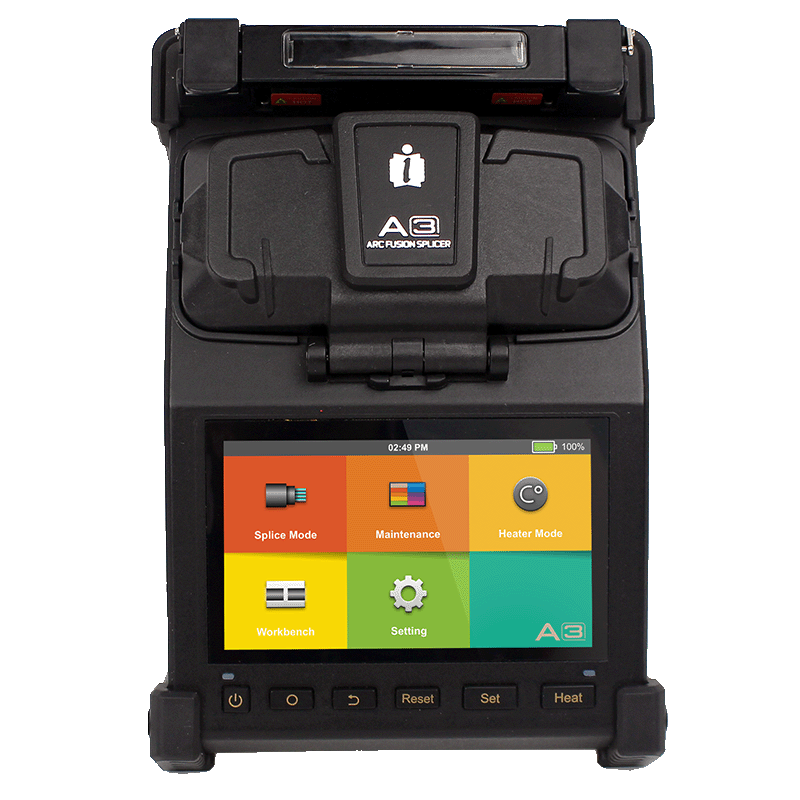

INNO-KOREA SPLICING MACHINE

Model A3 Alignment Method Active Clad Alignment (4 Motors) Number of Fiber Single Applicable Fibers SM (ITU-T G.652&G.657) / MM (ITU-T G.651) / DS (ITU-T G 653) / NZDS (ITU-T G.655) Coating / Cladding Diameter Coating Diameter : 100 – 3000μm, Cladding Diameter : 80 – 150μm Cleaved Length 5 – 16mm Typical Splice Loss SM: 0.03dB / MM: 0.01dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB (Measured by fusion splicing compensating cutback according to ITU-T standard) Return Loss >> 60dB Estimated Splice Loss Available Splice Time Quick mode 7s Splice Mode Preset 6 kinds of splicing mode, Max 320 mode available Heating Sleeve 20 – 60mm Heating Time 15s (45mm, slim 60mm), 20s (60mm) Heating Mode Max 32 modes Tension Test 1.96 – 2.25N Dimension 197W x 137D x 87H mm (including rubber bumper) / 187W x 128D x 82H mm (excluding rubber bumper) Weight 1.206kg (with battery) / 0.997kg (without battery) White LED 2 White LEDs Monitor 4.3″ Color LCD display, Full touch screen Fiber View X, Y, X/Y Magnification 120 – 240x Results Storage 10,000 Splice data / 10,000 Splice image Power Supply AC Input 100 – 240V, DC Input 9 – 14V Terminal USB Type C Battery Capacity 3000mAh Battery Capacity, Typical 150 cycles (Splice + Heat), Power save mode 200 cycles (Splice + Heat) Electrode Life 5500 arcs discharges Environmental Condition & Test Operating Condition Altitude: 0 – 5000m Humidity: 0 – 95%, non-dew Temperature: -10 – 50ºC Wind: up to 15m/sec Storage Condition Humidity: 0 – 95%, non-dew Temperature: -20 – 60 ºC Resistance Tests Shock Resistance : 76cm for bottom surface drop Exposure to Dust : 0.1 to 500um diameter aluminium silicate Rain Resistance : 10 mm/h for 10 mins • Water resistance (IPx2) • Shock resistance (Drop from 76cm) • Dust resistance (IP5X) * We do no guarantee and are not responsible for any damage caused due to tampering of the product under above conditions. Package List Model / Part No. Description Main Unit A3 Fusion Splicer Standard Accessories V7 Cleaver 1ea FH-45 Fiber Holder 1set FH-SOC-L SOC Fiber Holder 1ea HTS-SOC-05 SOC Heater Cover 1ea JS-1618 AC Adapter 1ea CG-22 Cooling Tray 1ea E-50 Electrode 1set LBT-3000-02 Battery Pack (3000mAh) 1ea ACC-25 Power Cable 1ea USB-8P USB Cable 1ea USB-9P USB Cable 1ea ICC-54 Carrying Case 1ea IWS-05 Work Station for A2, A3 1ea ST-01 Shoulder Strap (Carrying Case) 2ea Quick Reference 1ea *USB-8P Type-C USB to Type-A USB (Male) Cable *USB-9P Type-C USB to Type-A USB (Female) Cable
