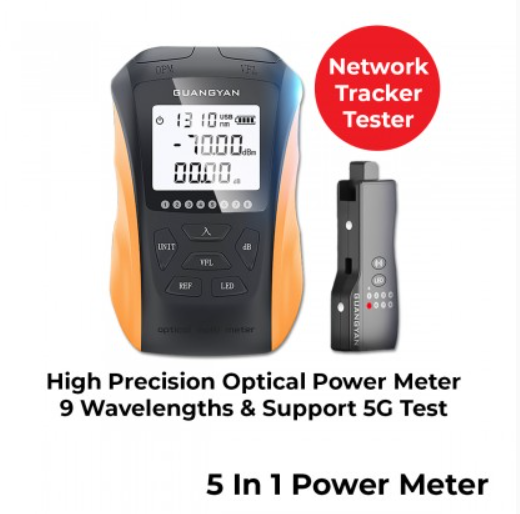

HIGH PRECISION OPTICAL POWER METER SUPPORT 5G TEST 9 WAVELENGTHS OPM RJ45 TEST LED LIGHT VFL 15KM NETWORK TRACKER TESTER_S2COM

Feature: - Multifunctional, optical power meter, red light source, RJ45 test, LED lighting 15KM, network tracker tester - 9 test wavelengths to switch cyclically to meet various test requirements, from 850nm to 1650nm - Added new 5G dedicated wavelengths 1270 & 1577 can be used to measure the 5G band - Good stability and accurate testing, high sensitivity controller, receiving light source sec side value - Built-in polymer lithium battery, more durable than ordinary batteries, lasting battery life - LED flashlight lighting function, convenient for dark environment line inspection construction - HD display, fear no darkness during the day and meet the needs of various working hours - Universal interface, support SC, FC, ST, 3 general fiber interfaces, plug and play - Self-service calibration, flexible calibration, and factory settings can be restored - Automatic frequency identification, the light attenuation of the accurately received frequency is automatically displayed in the third row according to the received frequency Specification: - Wavelength range: 800nm - 1700nm - Probe type: InGaAs - Measurement range: -70~+10 - Uncertainty: ±5% - Standard wavelengths (nm): 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625 - Display resolution: Logarithmic display 0.01dBm, Linear display 0.1% - Frequency identification (Hz): 270, 1000, 2000Hz - Automatic shutdown time (Min): 10 Minutes - Power supply: rechargeable lithium battery, external input- Battery 400mAh (G11), 1100mAH (Y8) - Weight: 85g (G11), 145g (Y8) - Instrument size: 172x40x28mm (G11), 115x71x30mm (Y8)
