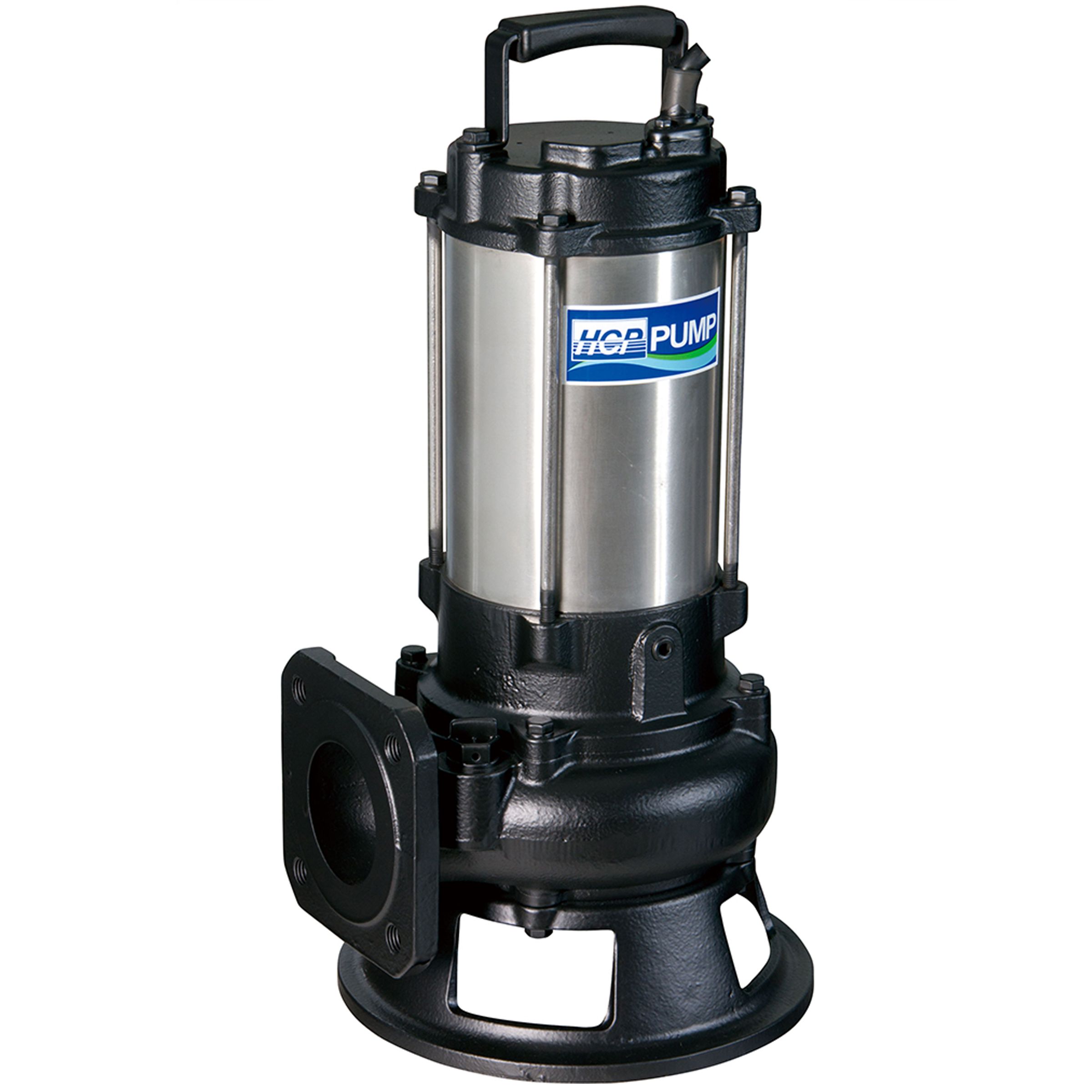

HCP FN35P-3 Phase Submersible Sewage Pump

HCP FN35P (made in Taiwan) is a submersible pump for sewage water. 3 phase Without auto float switch Features A precision manufactured motor is achieved by utilising the highest standard of quality control. All rotors adopt heat treatment methods for drive shaft assembling. Stator winding impregnated with varnish that is heat dried in an industrial oven. Standard accessories include : cable with an epoxy resin sealed water resistant cable base, Auto-cut thermal motor protector, dual mechanical seals and lip seal design. Applications Drainage of sewage from the building basements, hotel industry, and waste water from factories Drainage of sewage from industrial process factories Emptying of septic tanks, cesspits and sewage pump stations. Pumping surface and drainage water from garages and sprinkler systems. Specifications Power 5 HP (3700 watts) Power Source AC Supply 380V~415V Discharge 3″ (80mm) Phase 3Ø Start Method Direct Efficient / Maximum Head 19 / 25 meters Efficient / Maximum Flow Rate 600 / 1300 L/min Solid Passage 35mm Weight 35 kg
