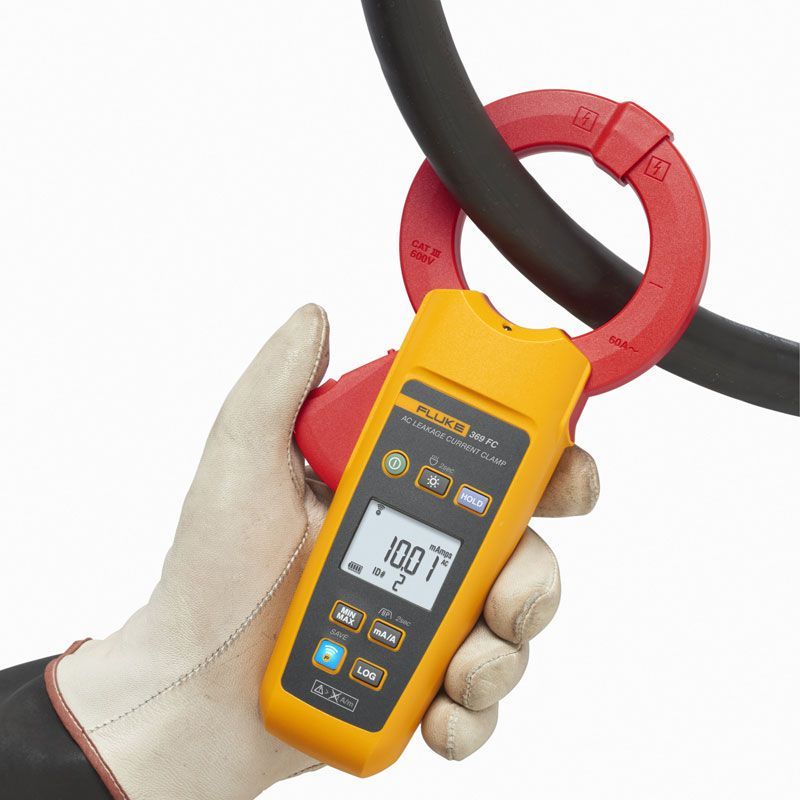

Fluke *Fluke 369 Leakage Clamp Meter

Fluke 369 Leakage Clamp Meter, Max Current 60A ac CAT III 600 V Manufacturer: Fluke Mfr. Part No.: FLUKE-369 Type : Clamp Meter Fluke 360 Series of true RMS leakage current clamp meters. The clamp meter can be used to detect, document, record and compare leakage current readings. Preventing unplanned downtime and identifying intermittent GFCI and RCD trips without taking equipment offline. Fluke 369 C have large diameter jaws for work with large cables. The clamps jaw is fully shielded to capture small leakage signals and minimising external electromagnetic interference. It also offers wireless data connectivity via Fluke Connect. Features and Benefits Forward facing work light, plus backlit display Highest resolution of 1 μA True RMS for accurate measurements of complex signals Selectable filter function eliminates unwanted noise CAT III 600 V safety Rating Fluke 369 FC Jaw Diameter: 61 mm Specifications Attribute Value Absolute Maximum AC Current Measurement 60A ac Model Number 369 AC Current Measurement Resolution 0.001mA Clamp Meter Type Leakage Clamp Meter Best AC Current Accuracy 1 % + 5 Digits True RMS Yes Functions Measured AC Current Display Type LCD Safety Category CAT III 600 V Dimensions 46 x 116 x 257mm Battery Type 2 AA, Alkaline, IEC LR6, NEDA 15 A Safety Category Voltage 600V Safety Category Level CAT III Weight 600g Jaw Capacity Busbars 61 (Dia.)mm Battery Life 150 h Maximum Conductor Size 61 (Dia.)mm Length 46mm Width 116mm Minimum Operating Temperature -10°C Power Source Battery Maximum Operating Temperature +50°C Height 257mm
