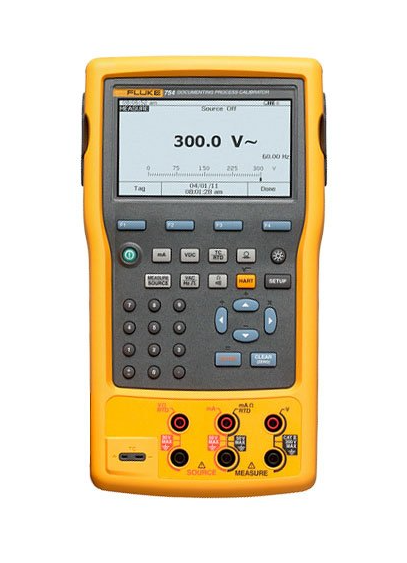

Fluke 754 Multi Function Calibrator

Manufacturer: Fluke Mfr. Part No.: Fluke-754 Fluke Documenting Process Calibrators 750 Series, 110mA, 300V Fluke 750 Series calibrators measure volts, mA, RTDs, thermocouples, frequency and ohms to test sensors, transmitters and other instruments. They source/simulate volts, mA, thermocouples, RTDs, frequency, ohms and pressure to calibrate transmitters. They can also: power transmitters during test, using loop supply with simultaneous mA measurement; measure/source pressure; create and run automated as-found/as-left procedures to satisfy quality programs or regulations; record and document results. Fluke 750 Series calibrators can hold up to a full week of downloaded procedures and calibration results. They use features such as Autostep, custom units, user-entered values during test, one-point and two-point switch testing, square root DP flow testing and programmable measurement delay. These instruments have a bright white dual display (3 settings) and multi-lingual interface (English, French, German, Spanish, Italian). They read both sourced and measured parameters simultaneously. Features and Benefits: Calibrate temperature, pressure, voltage, current, resistance and frequency 3 operating modes: measure; source; simultaneous measure/source Easy-to-follow, menu-driven display which guides users through tasks Graphical display bright enough for readings to be seen in any light condition Features and Benefits: The Fluke-753 and Fluke-754 share common features and capabilities but the Fluke-754 has, additionally, integrated HART communication functions, enabling users to monitor, control and calibrate HART instrumentation. Supplied with algebraic calculator (built-in), 3 sets of stackable test leads, 3 sets of TP220 test probes with 3 sets of "extended tooth" alligator clips, 2 sets of AC280 hook clips; C799 field soft case, Li-ion BP7240 rechargeable battery (up to 10 hours uninterrupted use) with gas gauge, BC7240 battery charger, USB communication cable, getting started guide, instruction manual on CD-ROM, certificate of calibration and DPC/TRACK 2 software sample (which enables upload and printing of calibration records) Specifications Attribute Value Maximum Voltage Measurement 300V Maximum Current Measurement 110mA Port Connections Charger, HART, Pressure Module, USB Battery Life 8 h Battery Type Rechargeable Lithium-Ion Power Source Battery Weight 515g Height 245mm Length 188.5mm Maximum Operating Temperature +50°C Minimum Operating Temperature -10°C Model Number p 754 Width 84mm
