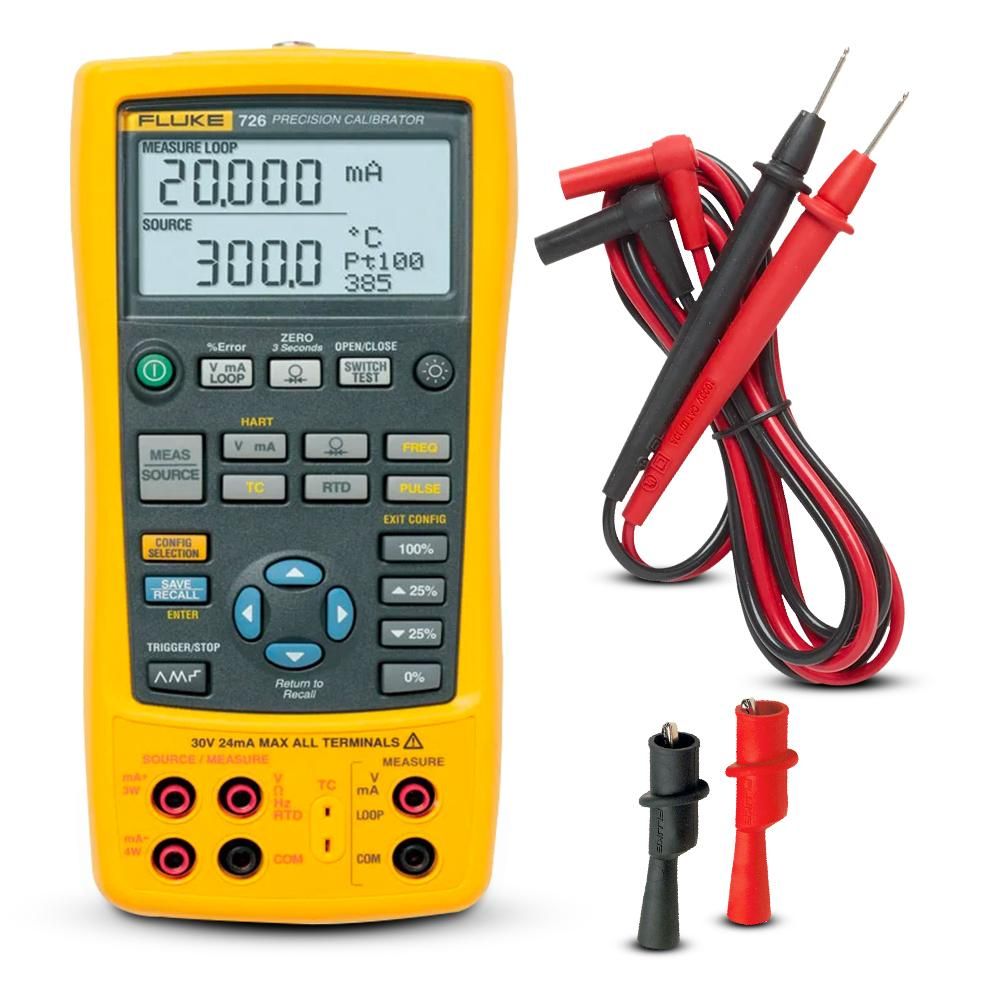

Fluke 726 Multi Function Calibrator

Manufacturer: Fluke Mfr. Part No.: FLUKE-726 Fluke Precision Multifunction Process Calibrator, 55mA, 30V dc The Fluke precision multifunction process calibrator is a powerful, yet easy-to-use field calibrator. It can be used to measure and source mA, volts, temperature (RTDs and thermocouples), frequency, ohms, and pressure, using optional pressure modules to test and calibrate almost any process parameter. This calibrator will also interpret results without the help of a calculator and store measurement data for later analysis. Features and Benefits More precise measurement and calibration source performance, accuracies of 0.01% Two separate channels measure, source and view process signals simultaneously Measure volts, mA, RTDs, thermocouples, frequency, and resistance to test sensors and transmitters Source/simulate volts, mA, thermocouples, RTDs, frequency, and pressure to calibrate transmitters Measure or source pressure using any of 29 Fluke 700Pxx pressure modules Source mA with simultaneous pressure measurement to conduct valve and I/P tests Integrated pressure switch test allows you to capture the set, reset and dead band of a switch Memory storage for up to 8 calibration results, return stored calibration data from the field for later analysis Transmitter error % calculation, interpret calibration results without a calculator Perform fast linearity tests with auto step and auto ramp features Power transmitters during test using 24V loop supply and simultaneous mA measurement Store frequently-used test setups for later use Frequency totalizer and frequency pulse train source mode for enhanced flowmeter testing HART mode inserts 250ohm resistor in mA measure and source for compatibility with HART instrumentation Custom RTD curves, add calibration constants for certified RTD probes for enhanced temperature measurement Features and Benefits Process control automation Manufacturing Instrumentation Certifications CE certified CSA certified Specifications Attribute Value Maximum Voltage Measurement 30V dc Maximum Current Measurement 55mA Maximum Pressure Measurement 700bar Port Connections 4 mm Socket Battery Life 80 h Battery Type AA Power Source Battery Weight 400g Height 200mm Length 180mm Maximum Operating Temperature +50°C Minimum Operating Temperature -10°C Model Number p 726 Width 85mm
