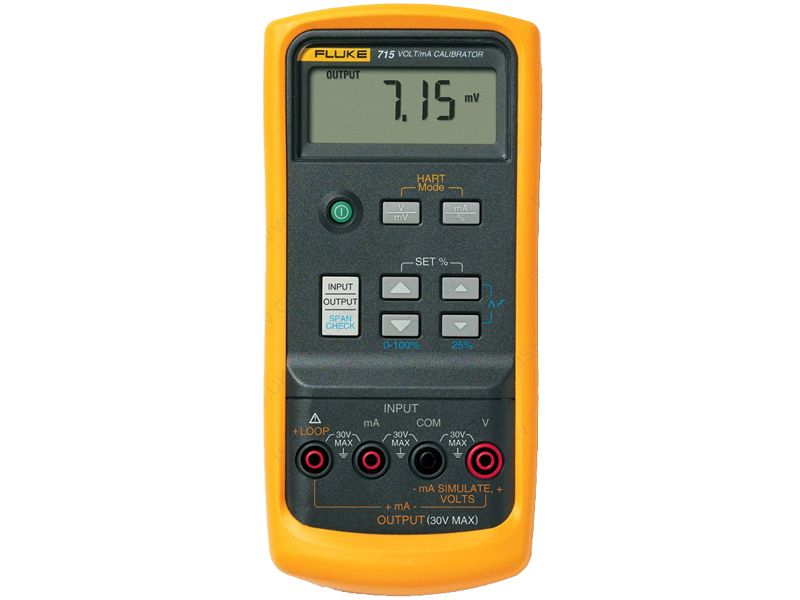

Fluke 715 Current and Voltage Loop Calibrator

The Fluke current and voltage calibrator delivers outstanding performance, durability and reliability. The calibrator measures loop current (0 mA to 20 mA, 4 mA to 20 mA) signals with 0.01% accuracy and 0.001 mA resolution. It can source precision voltage signals up to 20V with 0.01% accuracy. Offered in the rugged Fluke 80 series DMM package, the calibrator is compact, lightweight, and easy to carry. Its pushbutton interface makes it extremely easy to use, similar to the multifunction Fluke 750 calibrators. It is EMI tolerant, dust, and splash resistant and also features a removable battery door for quick battery changes. Features and Benefits Clear 5-digit LCD display Operating temperature ranges between -10°C and +55°C Measure voltage output process signals from PLCs, transmitters Source or simulate 24mA loop current Source voltage to 200mV or 10V Provides 24V loop supply with simultaneous current measurement Display mA or % of span Dimensions of 201 x 98 x 52mm in the format of (L x W x D) 250 ohm HART resistor with loop power Holster features test lead storage Compatible with tool pack magnetic hanging system Step and linear ramp output function Configurable zero and span settings Applications Electrical servicing and maintenance Laboratories Electronic servicing and maintenance Industrial automation Certifications CE certified CSA certified The Fluke current and voltage calibrator delivers outstanding performance, durability and reliability. The calibrator measures loop current (0 mA to 20 mA, 4 mA to 20 mA) signals with 0.01% accuracy and 0.001 mA resolution. It can source precision voltage signals up to 20V with 0.01% accuracy. Offered in the rugged Fluke 80 series DMM package, the calibrator is compact, lightweight, and easy to carry. Its pushbutton interface makes it extremely easy to use, similar to the multifunction Fluke 750 calibrators. It is EMI tolerant, dust, and splash resistant and also features a removable battery door for quick battery changes. Features and Benefits Clear 5-digit LCD display Operating temperature ranges between -10°C and +55°C Measure voltage output process signals from PLCs, transmitters Source or simulate 24mA loop current Source voltage to 200mV or 10V Provides 24V loop supply with simultaneous current measurement Display mA or % of span Dimensions of 201 x 98 x 52mm in the format of (L x W x D) 250 ohm HART resistor with loop power Holster features test lead storage Compatible with tool pack magnetic hanging system Step and linear ramp output function Configurable zero and span settings Applications Electrical servicing and maintenance Laboratories Electronic servicing and maintenance Industrial automation Certifications CE certified CSA certified
