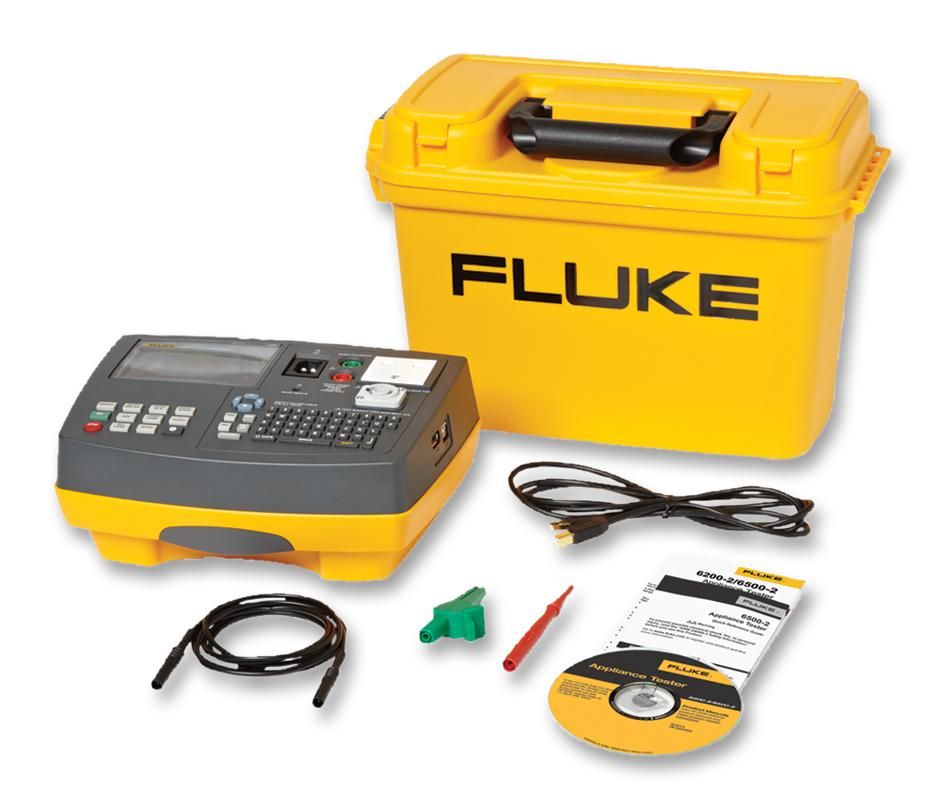

Fluke 6500-2 PAT Testing Kit

Manufacturer: Fluke Mfr. Part No.: 6500-2 UK KIT Type : PAT Testers The Fluke 6500-2 PAT tester is a low weight, small size, one-touch solution with redesigned auto-test capabilities to help you increase the number of portable appliance tests completed each day. The 6500-2 is designed to enable you to work faster without compromising test results. Pre-set test routines are initiated from a single button. This not only simplifies testing but also facilitates a faster, more efficient way of working. The fully automatic 6500-2 also includes user-definable test routines and a QWERTY keyboard for rapid data entry. Features & Benefits With powerful auto test capabilities and simplified controls, including ’one touch’ test routines, the Fluke 6500-2 PAT Tester increases the number of tests you can perform per day without compromising results The Fluke 6500-2 is suitable for testing both 230 V and 110 V appliances,the 6500-2 model runs all the required safety tests: Earth bond low (low/high current, Insulation 500 V, 250 V, Leakage (PE current, touch current, substitute current), Can test 110 V appliances (earth bond, insulation) via the 110 V adapter kit Integral QWERTY keyboard for rapid data entry Memory for back-up data storage and USB port for transfer to PC Large backlit graphics display Pre-set, auto-test sequences for user convenience Integral site, location and description codes for faster data processing Memory review facility for more on-site control Dedicated key for each test for ’one-touch’ testing Pre-set pass/fail levels to save time Large display for easy reading Single mains socket for appliance connection Separate IEC socket for easy mains/extension lead testing Detachable test leads for quick field replacement Integral carrying handle Dimensions: 200 x 275 x 114 mm Weight: 3.13 kg Test specifications Power-on test Earth bond test (Rpe) Insulation test (RISO) Touch current test Substitute leakage current RCD Test: trip current RCD Test: trip time Load/Leakage test: load current Load/Leakage test: load power display range 230 V mains Load/Leakage test: Leakage current PELV test Standards Complies with EN61010-1 3rd edition CAT II, 300 V, pol 2 Supplied with SPSCAN6000 Barcode Scanner, APP 1000 Barcode Appliance Number Labels, Fail 100s Appliance Fail Labels, Pass 560R Appliance Pass Labels, EXTL 100 Extension Lead Test Adaptor, DMS 0702 Software, Hard Carry Case. Specifications Attribute Value Tester Type Dual Voltage PAT Test Type Class I, Class II Testing Method Automatic Download Yes Power Source Mains Weight 3kg Height 100mm Length 200mm Maximum Operating Temperature +40°C Maximum Supply Voltage 230V Minimum Operating Temperature 0°C Width 275mm Model Number p 6500
