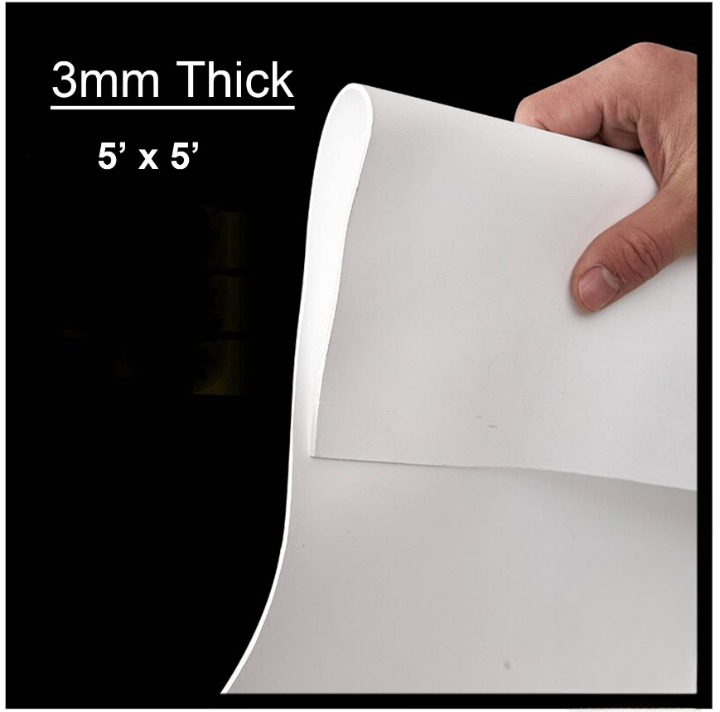

EXPANDED PTFE SHEET SOFT EPTFE GASKET WHITE 3MM X 5'X 5’

Expanded PTFE Sheet Size: 3mm Thick x 1500mm Width x 1500mm Length ePTFE Gasket Sheets: ePTFE (expanded PTFE) gasket sheets are technologically advanced gasketing materials that offer the advantages of PTFE in a pure expanded form. These sheets are resistant to cold flow, flexible, economical, and easy to cut and install. They are available as pre-cut gaskets or in sheet form for on-site customization. Features and Benefits: Multidirectional fibrous texture provides excellent material characteristics at high surface pressures and increasing temperatures. Minimal changes in width and height even under extreme operating conditions, maintaining high surface pressures at elevated temperatures. Designed for highest safety requirements, ideal for critical joints such as flanges in oxygen pipelines. Available in diverse dimensions, heights, and densities for various applications. Technical Specifications: Material: ePTFE (Expanded PTFE) Sealing Capability: Seals rough and irregular surfaces, achieving sealing pressures of up to 3000+ psi depending on flange type, design, and media. Chemical Resistance: Resistant over the pH range of Q-14, suitable for most services. Temperature Range: Suitable for temperatures up to 315°C. Construction: Manufactured by expanding 100% virgin PTFE through a proprietary process, resulting in a uniform and highly fibrillated microstructure with equal tensile strength in all directions. Application/Service: Suitable for various industries, including distilleries, food and beverage, general chemical, marine, iron and steel manufacturing, pharmaceutical, petrochemical, pulp and paper, and power generation. Service Limits: Temperature Range: * Minimum: -450°F (-268°C) * Maximum: 600°F (315°C) * pH Range: 0-14 (excluding molten alkali metals and elemental fluorine) * Color: White * Compressibility: 66% * Recovery: 16% * Service Pressure: Up to 20 MPa * Shelf Life: indefinite ePTFE gasket sheets offer excellent sealing capabilities, chemical resistance, and temperature tolerance, making them a versatile choice for various industries and applications. Their softness, flexibility, and ability to conform to irregular surfaces make them an ideal solution for demanding sealing requirements.
