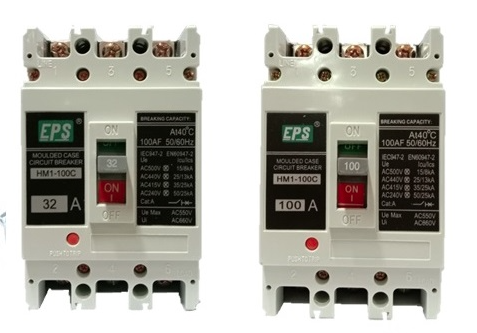

EPS HM1-100C 3POLE 25KA MCCB

The EPS HM1 Series MCCBs are designed and fully type tested by Interlek SEMKO in compliance to IEC 60947-2 international standards. The complete range of this HM1 series MCCBs (available from 6A – 800A ratings) offers total protection against overcurrent and sort circuits at most common fault levels. The various interrupting capacities available under this series are most suitable for all installation ranging from Main Switchboard, Sub Boards to Distribution Boards. Product Features Material The casing for the HM1 series MCCBs is made of BMC, a highly unbreakable material with a very strong dielectric strength to ensure the highest level of insulation & protection. Mechanism The EPS HM1 series is designed to be trip-free and this occurs when the breaker contacts open under short circuit and overload conditions. To avoid single phasing, if a short circuit or overload occur on any one phase, a common trip mechanism will disconnect all phase contacts of a multi-pole breaker. Accessories Standard features include a trip button and an automatic tripping device. In keeping up with the latest electrical designs and building automation, the HM1 series can be fitted with the following accessories. Weight N/A Rated Current : 20A, 32A, 40A, 50A, 63A, 80A, 100 BRAND: EPS
