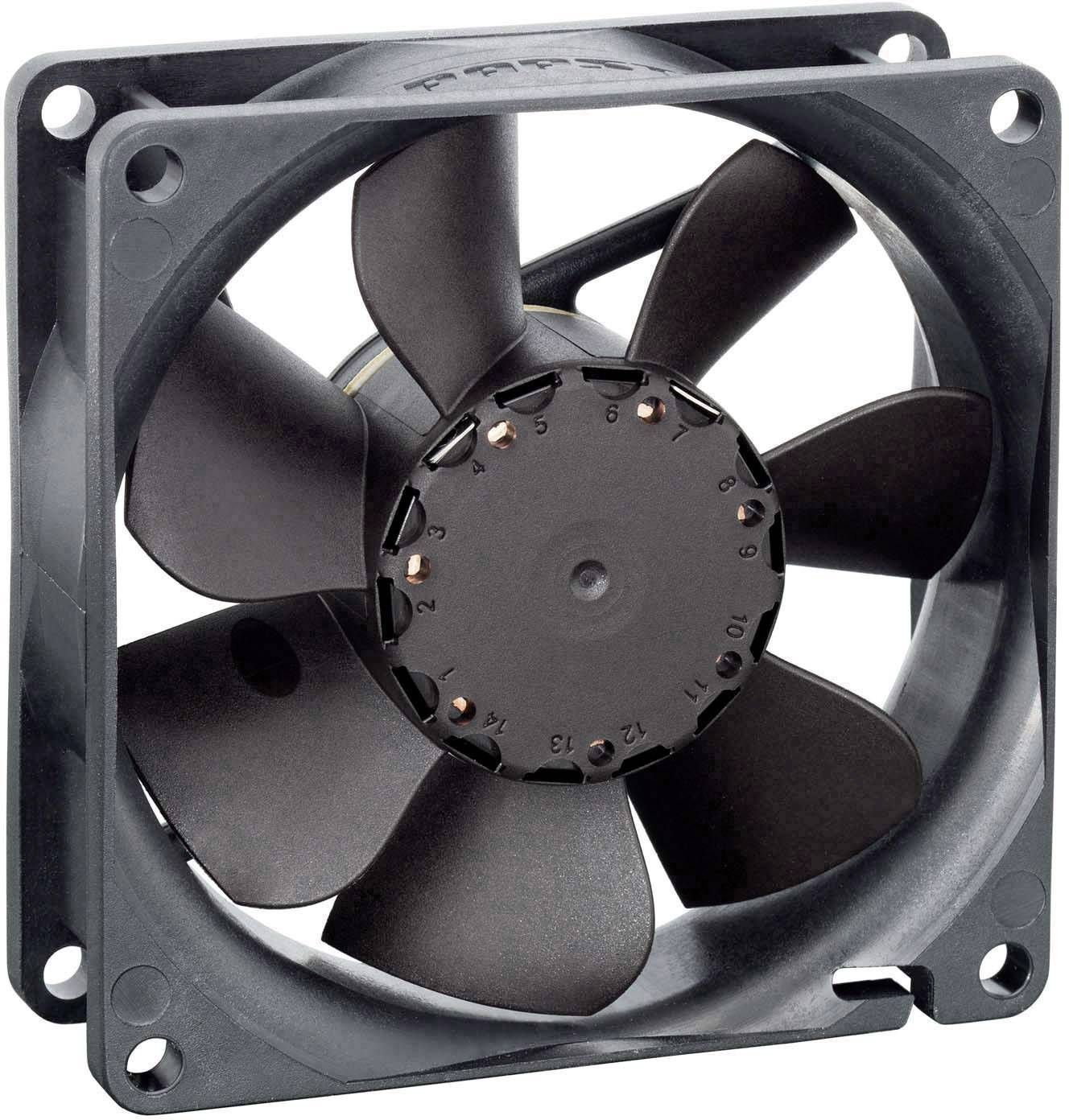

ebm-papst 8412NG DC Axial Fans

ebm-papst 8400 N Series Axial Fan, 12 V dc, DC Operation, 69m³/h, 2W, 80 x 80 x 25mm Manufacturer: ebm-papst Mfr. Part No.: 8412NG • Performance from 33m3/h to a maximum of 79m3/h, depending on variant • Low, medium and high speed versions available • Fan motor integrated into the impeller hub to form a compact fan unit • External rotor motor with efficient and reliable brushless design • Air exhaust over the struts • Compact 80 x 80 mm design with small installation depth of 25 mm • Expertly designed for maximum efficiency and performance • Choice of durable ball bearings for high ambient temperatures and high service life or PAPST Sintec sleeve bearings for low noise and low shock sensitivity • Aerodynamic blades for low noise level and increased efficiency • Flanged housings with mounting holes for installation into equipment • Lightweight design with glass fibre reinforced plastic housing and impeller • Reverse polarity and locked rotor protection • IP20 protection rating • Service life of 117500 hours and above Applications These DC axial fans are designed for hot or cold air exchange in a wide range of devices and systems. These applications include the following: • Audio/Video • Catering • Control equipment • Data storage • Domestic Appliances • Electronics • Heating and Ventilation • Laboratory • Lasers • Lighting • Machines & Industrial • Pharmaceutical • Power optimisation • Power Supplies Approvals UL; CSA; VDE Specifications Attribute Value Supply Voltage 12 V dc Height 80mm AC or DC Operation DC Width 80mm Power Consumption 2W Depth 25mm Maximum Current 167mA Dimensions 80 x 80 x 25mm Air Flow 69m³/h Noise Level 32dB Fan Speed 3100rpm Bearing Type Sleeve
