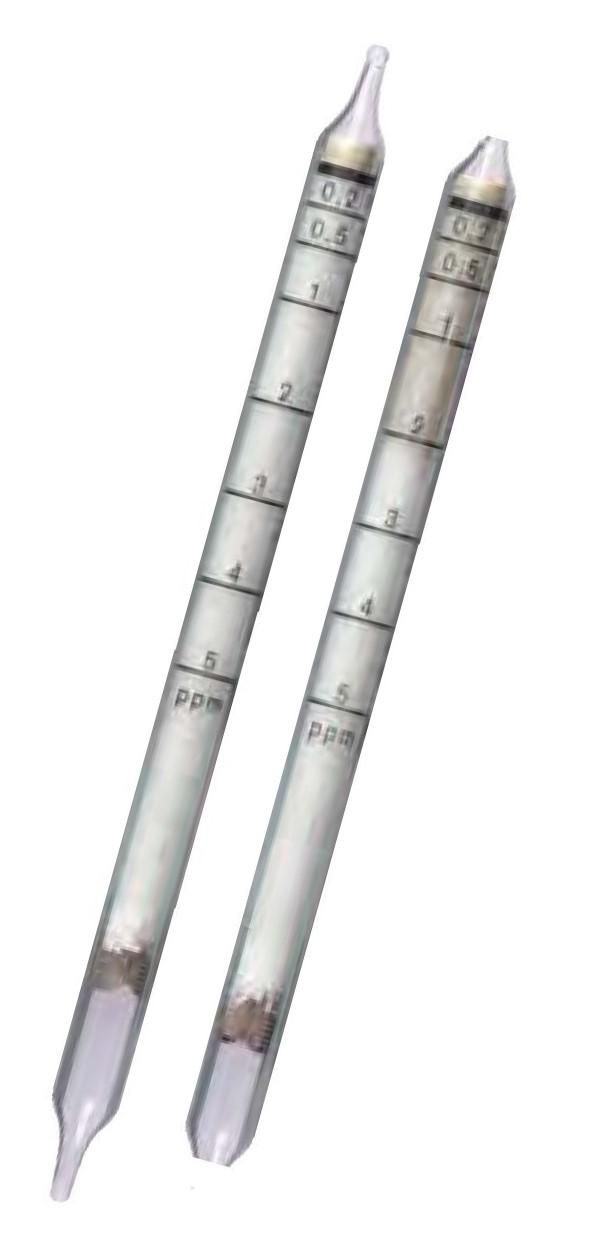

Dräger/Draeger 8101461 DT Hydrogen Sulfide 0.2/a Tubes [10s]

Draeger Tubes used in testing for Hydrogen Sulfide 0.2/a Draeger Part # 8101461 Aerotest Tube, Measuring Range: 0.2 – 5 ppm (10 Tests per Box) Maker : Draeger Part # 8101461 Draeger Tubes - Hydrogen Sulfide 0.2/a Aerotest Tube, Measuring Range: 0.2 - 5 ppm (10 Tests per Box) Draeger Tubes used in todays workplace provide quantitative results with a high degree of accuracy, repeatability and selectivity. The printed scale allows technicians to easily view the direct reading of the concentration. Calibration by the user is not necessary. The length-of-stain discoloration does not correspond to the concentration as a direct measure but is a measure of the mass reaction of the air contaminant. Draeger Tube use is made according to the different areas of application & testing: Air investigation in the workplace Measurements in the range of the occupational exposure limits Technical gas analysis Emission concentrations Compressed air for breathing apparatus and compressed gases Draeger tubes are designed for on-the-spot measurements at a particular location over a relatively short time period. Draeger Tube measurements may last from 10 seconds to 15 minutes or so depending on the particular Draeger Tube and Draeger Tube sampling pump. Some applications for short-term tubes are the evaluation of concentration fluctuations in the workplace, the measurement of contaminants in the workers’ breathing zone, the investigation of confined spaces (e. g. grain silos, chemical tanks, sewers) prior to entry and to check for gas leaks in process pipelines. The Draeger Tube measurement system consists of a Drager-Tube and a Drager gas detector tube pump. Each Draeger-Tube contains a very sensitive reagent system that produces accurate readings when the technical characteristic of the gas detector pump precisely match the reaction of the reagent system in the tube. The Draeger Tube Pump delivers the correct volume and must also pull the sample through the Draeger Tube at the proper rate. Basically, the pump and tube form a sampling unit. To interchange the pumps and tubes of various manufacturers can lead to erroneous results.
