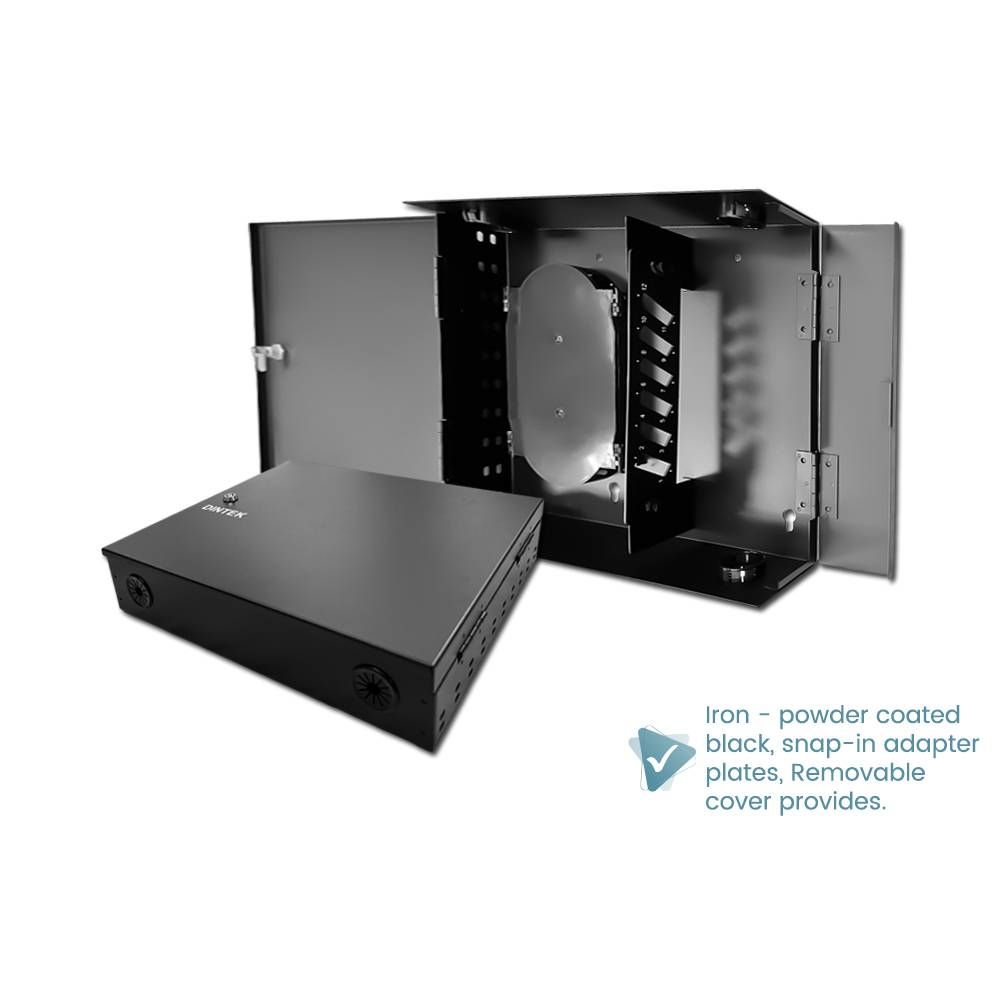

DINTEK WALL MOUNT FIBER OPTIC ENCLOSURE 12 PORTS UNLOADED SC PANEL (12 PORT SC)

DINTEK Light-LINKSTM wall mounted fiber optic splice and termination enclosures provide an economical and quality solution for installations of any size, where direct termination or pigtail splicing is required. The typical use of these enclosures include situations where outside plant cables are terminated onto the back of the adapter plate or where pigtails are spliced onto the incoming cable. These enclosures are also used as point to point patch connections or as end termination for backbone spurs in the Telecom environment. The Light-LINKSTM Wall mounted fiber optic enclosure range comes in L*W*D: 290*255*60mm dimension. The units can be purchased with adapter plate configurations being either SC or ST. Features: Designed for fiber optical backbone cabling applications. Snap-in adapter plates & removable cover, provide for easy access and installation. Contains Splice tray Easily added to existing multimedia installations that will require fiber terminations. Splice tray, sleeves and SC, ST adapters are available separately to load into the enclosure.(optional) Accepts up to 1 x 6 port duplex SC adapter plate Material: Iron - Powder Coated Black Dimensions: 290*255*60mm Weight: 2.0Kg
