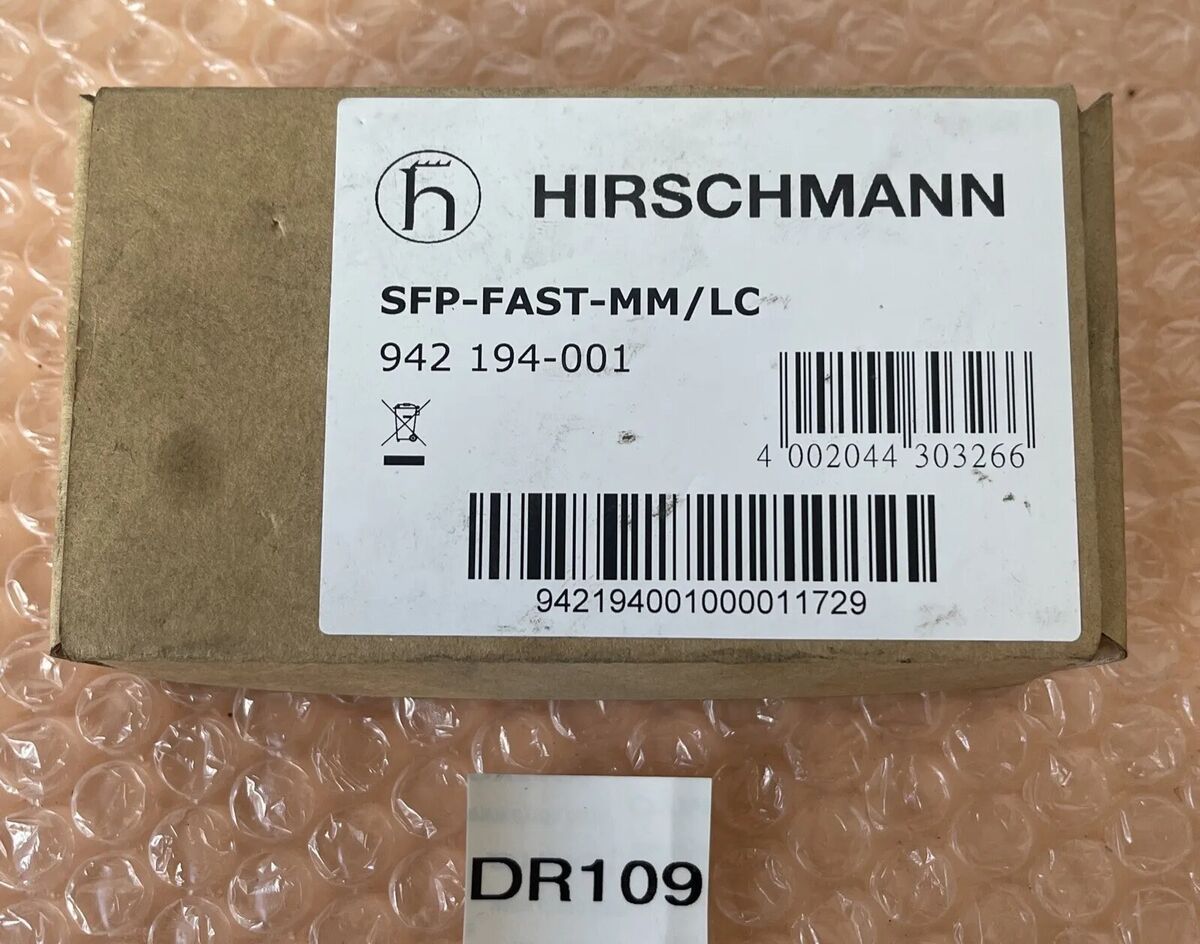

Belden Hirschmann Fibre Optic Transceiver, 1W Power Consumption - SFP-FAST-MM/LC-EEC

Hirschmann SFP-FAST-MM/LC-EEC Fibre Optic Transceiver, 100Mbit/s Product Description SFP Fiberoptic Fast-Ethernet Transceiver MM with LC connector, extended temperature range Technical Specifications Product description Type: SFP-FAST-MM/LC-EEC Description: SFP Fiberoptic Fast-Ethernet Transceiver MM, extended temperature range Part Number: 942194002 Port type and quantity: 1 x 100 Mbit/s with LC connector Network size - length of cable Multimode fiber (MM) 50/125 µm: 0 - 5000 m 0 - 8 dB link budget at 1310 nm A = 1 dB/km, 3 dB Reserve, B = 800 MHz x km Multimode fiber (MM) 62.5/125 µm: 0 - 4000 m 0 - 11 dB link budget at 1310 nm A = 1 dB/km, 3 dB Reserve, B = 500 MHz*km Power requirements Operating Voltage: power supply via the switch Power consumption: 1 W Software Diagnostics: Optical input and output power, transceiver temperature Ambient conditions Operating temperature: -40-+85 °C Storage/transport temperature: -40-+85 °C Relative humidity (non-condensing): 5-95 % Mechanical construction Dimensions (WxHxD): 20 mm x 18 mm x 50 mm Weight: 40 g Mounting: SFP slot Protection class: IP20 Mechanical stability IEC 60068-2-6 vibration: 1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min IEC 60068-2-27 shock: 15 g, 11 ms duration, 18 shocks EMC interference immunity EN 61000-4-2 electrostatic discharge (ESD): 6 kV contact discharge, 8 kV air discharge EN 61000-4-3 electromagnetic field: 10 V/m (80-1000 MHz) EN 61000-4-4 fast transients (burst): 2 kV power line, 1 kV data line EN 61000-4-5 surge voltage: power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line EN 61000-4-6 Conducted Immunity: 3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)
