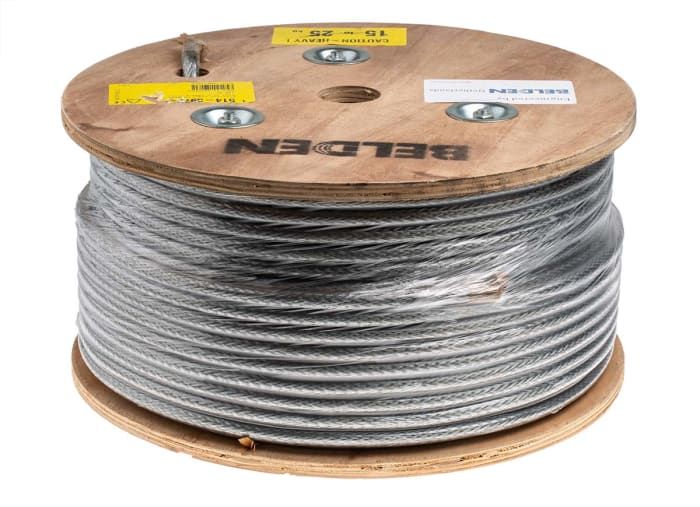

Belden SY 4 Core SY Control Cable 1.5 mm², 100m, Screened (SYSD04.01100)

Flexible Armoured SY Type Mains Cable Flexible mains cable, commonly known as an ’SY’ type, which has three layers of protection, combining the characteristics of a flexible mains cable with that of a steel wire armoured type. Features and Benefits ·Flexible ·Good resistance to chemicals Applications ·Ideal for applications where power is required in arduous situations, on automated or robotic equipment and where equipment may be subjected to vibration or movement. Manufactured to VDE 2050 standard Core colours: 4-core: Blue, Brown, Black, Green/Yellow Note SY control cables are not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671 Number of Cores 4 Cross Sectional Area 1.5 mm² Outer Diameter 11.7mm Current Rating 16 A Minimum Operating Temperature -5°C Maximum Operating Temperature +70°C Voltage Rating 300/500 V Core Strands 30/0.25 mm Sheath Material Polyvinyl Chloride PVC Sheath Colour Transparent Earth Cable Yes Bedding Material PVC Conductor Material Copper Minimum Bend Radius 10 x Diameter Length 100m Insulation Material PVC Conductor Resistance 13.3 Ω/km American Wire Gauge 15 AWG Screened/Unscreened Screened Screen Type Galvanised Steel Braid Series Belden SY Oil Resistant No 1 ROLL OF 100METER
