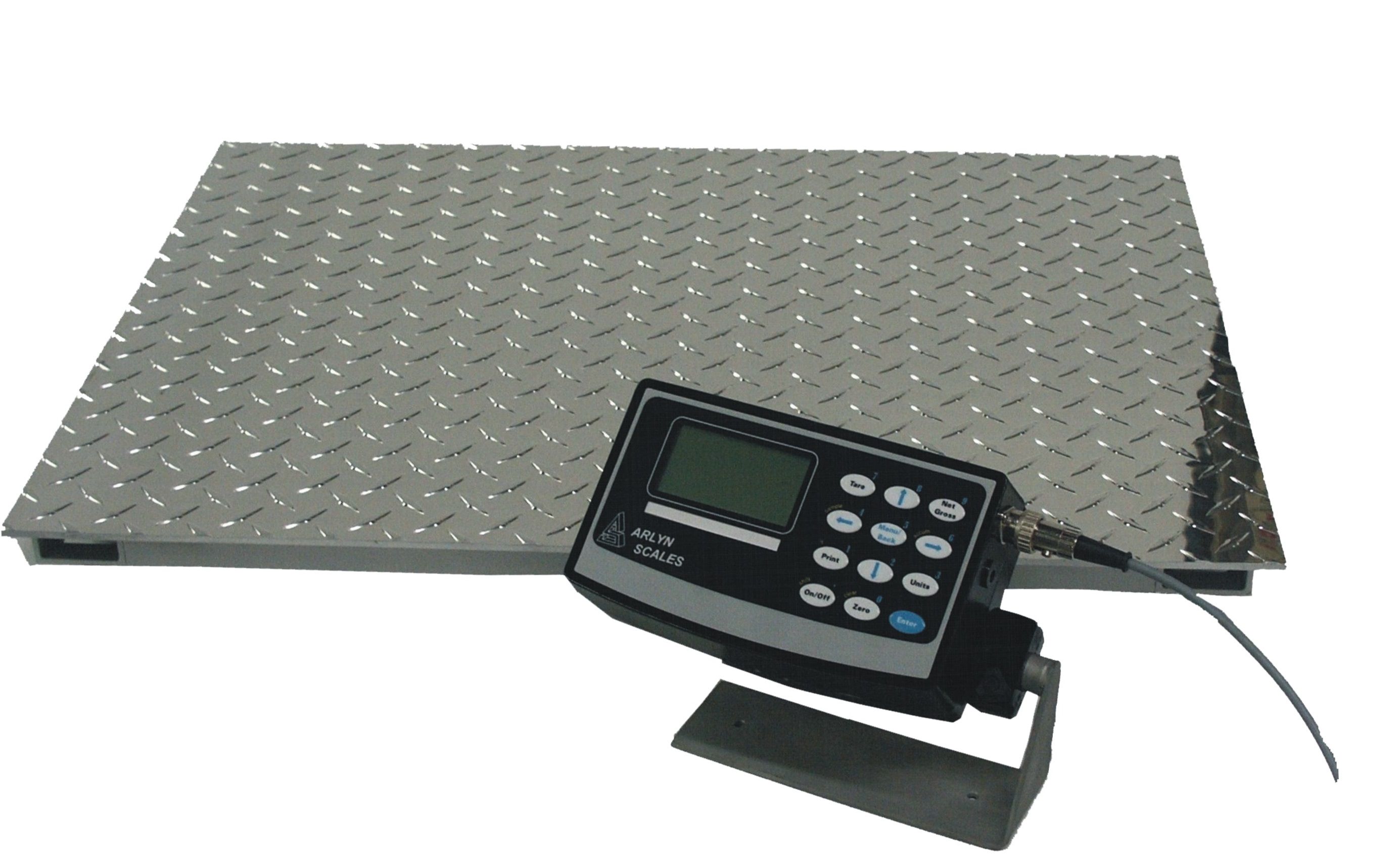

Arlyn Scales ArlynGuard P Intrinsically Safe Platform Scales - From 500lb to 1000lb

Platform Size : 36" x 36" x 1 7/8" Capacity & Resolution : 1000 lb x 0.2 lb Platform Material : Stainless Steel Intrinsically Safe Class I, II, III, Division 1, Groups A, B, C, D, E, F & G Class I, Zone 0, AEx ia IIC (T3 Ta=60C) Indoor Hazardous (Classified) Locations. Nonincendive for use in Class I, Division 2, Groups A, B, C and D Suitable for use in Class II, Division 2, Groups F & G, Class III, Division 2 indoor Hazardous (Classified) Locations. High Precision Capacities range up to 1000 lb. Sensitivity is available as high as 0.1 lb. The internal resolution of the scale is 1 part of 500,000. Easy to Use The large graphical LCD digital display is provided with a stainless steel swivel mount. Front panel functions are used for automatic and keyboard tare with more than 100 memory locations, net /gross, zero, and multiple units conversion (lb, kg, oz, troy, etc.). Display mode indicators. Many Alternate Sizes Available The load cells are fabricated from special heat treated stainless steel alloy. Platforms are constructed from welded aluminum or optional stainless steel. Many other sizes are also available from the factory. Enhanced Options Advanced options, features and outputs such as USB Data Logging, Modbus, Ethernet/Wi-Fi, Integration with Google Spreadsheets, Cloud Monitoring and others are available with Safe Area Configurations. Check out the Upgrades Table below for a list of options we offer. Approvals All ArlynGuard scales are equipped with one or more of: Model MKE-5-IS-a (b) Digital Weight Indicator System Load Cell Models 620-300-IS, 620-100-IS, 620-50-IS, 620-25-IS, 620-10-IS, 520-10000L-IS, 520-5000L-IS, 520-5000IS, 520-2500-IS, 520-1250-IS, 320-500-IS and 320-250-IS which are Factory Mutual (FM) Approved components as per Approval Standard 3600, 3610, 3611 and 3810. Specifications Class I, II, III, Division 1, Groups A, B, C, D, E, F & G Class I, Zone 0, AEx ia IIC (T3 Ta=60C) Indoor Hazardous (Classified) Locations. Nonincendive for use in Class I, Division 2, Groups A, B, C and D Suitable for use in Class II, Division 2, Groups F & G, Class III, Division 2 indoor Hazardous (Classified) Locations. Brochure & Datasheet ArlynGuard P - Specification Sheet (PDF) Tare, Zero Range 100 % of full scale Display Speed Adjustable between 0.1 and 0.5 seconds Overall Indicator Dimensions 8W x 4.8W x 2.5D(inch) Power Requirements Included Battery Supply - Uses (3) supplied 2600mAh NiMH AA batteries (1 additional set provided with re-charger.) Batteries must be changed and recharged in safe area! Battery Life - Typical 96 hours of operation. Depends on options attached. AC Powered Systems are now available (see Configuration #2). Call for details. Accuracy 0.1% of full scale. Display 1" high graphics LCD digits. Approvals This ArlynGuard scale is equipped with one or more of: Model MKE-5-IS-a (b) Digital Weight Indicator System Load Cell Models 620-300-IS, 620-100-IS, 620-50-IS, 620-25-IS, 620-10-IS, 520-10000L-IS, 520-5000L-IS, 520-5000IS, 520-2500-IS, 520-1250-IS, 320-500-IS and 320-250-IS which are Factory Mutual (FM) Approved components as per Approval Standard 3600, 3610, 3611 and 3810. Minimum Sampling Rate 10 Hz
