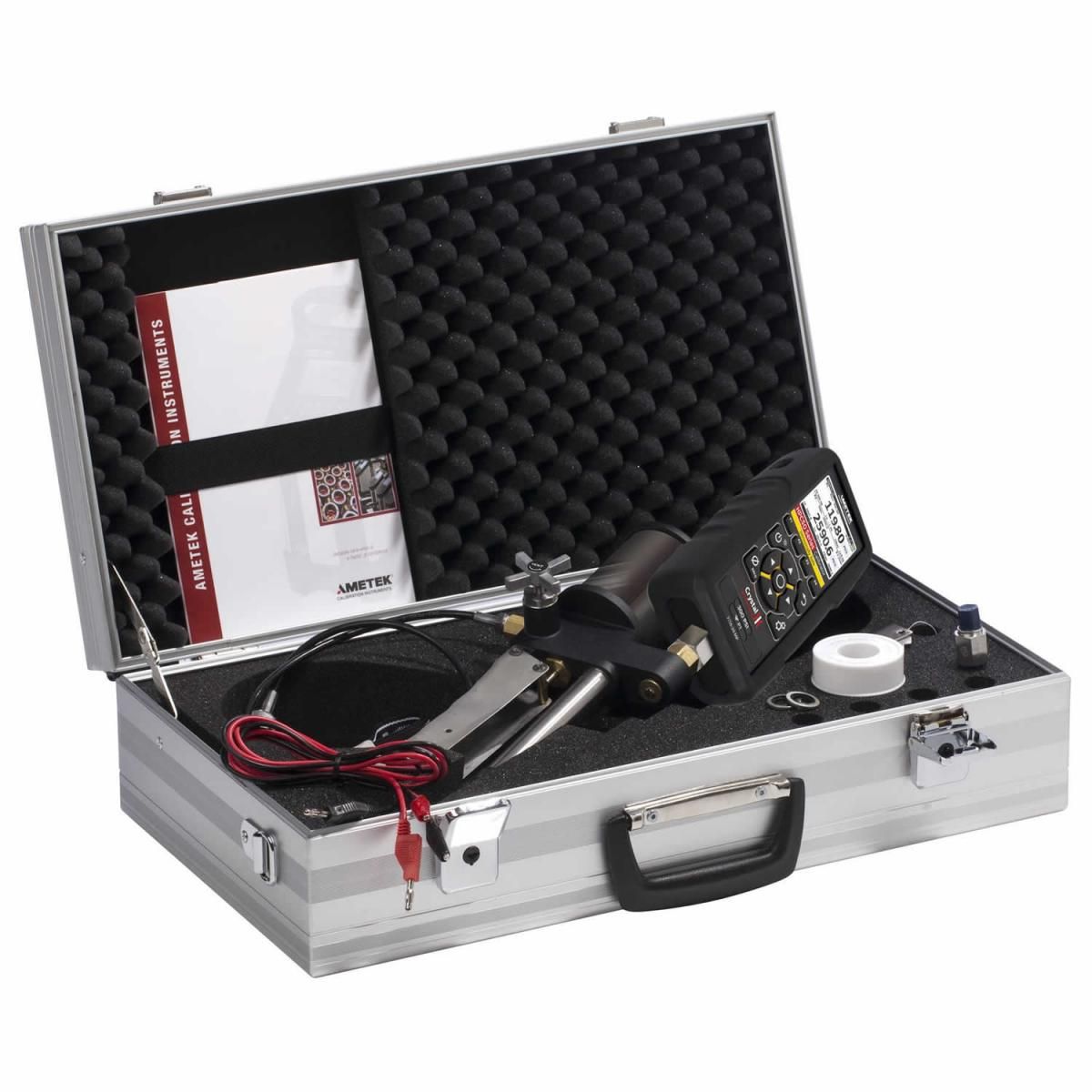

*AMETEK CRYSTAL ENGINEERING INTRINSICALLY SAFE HAND HELD PRESSURE CALIBRATOR HPC52

HPC50 SERIES PRESSURE CALIBRATORHAND HELD PRESSURE CALIBRATOR HPC52 ( INTRINSICALLY SAFE ) + PUMP SYSTEM HOX-1 + ADVANCED TEMPERATURE MODULE ATMi + TEMPERATURE REFERENCE PROBE STS050A-350H-F MODEL : HPC52 3BAR 300BAR HOX-1 - (ATMi-T5 ) MAKE : AMETEK INDICATOR : VACUUM -3 BARG / RANGE : 0-300 BARG RESOLUTION : 3 BAR RANGE 0.0001BAR/0.1 milliBAR/0.01 KPA/0.00001 MPA/0.001PSI/ 0.01INH20/0.001 INHG/ 0.01 MMHG/ 0.0001KG/CM2 : 0-300 BAR RANGE 0.01BAR/1 KPA/0.001 MPA/0.1PSI/ 0.01KG/CM2 ACCURACY : 18 TO 28 DEG. C ( GAUGE PRESSURE) 0 TO 30% RANGE : +/-(0.01% OF F.S) 30 TO 110% RANGE : +/-( 0.035% OF READ.) VACUUM : +/- (0.05% OF F.S.) EX CERTIFICATES : ATEX II 1 G Ex ia IIC T4/T3 Ga FTZU 18 ATEX 0043X IEC Ex ia IIC T4/T3 Ga IECEx FTZU 18.0012X CURRENT (MA) : 0 TO 55 MA INPUT ACCURACY, +/-(0.015% OF RDG+0.002MA) PERCENT RANGE,0-20,4-20, 10-50 MAX ALLOWABLE CURRENT, 93.3MA HART RESISTOR,250 OHM RESOLUTION, 0.001MA OR 0.01% UNITS :MA, SCALING,% ERROR,& % FLOW HART RESISTOR,250 OHM CURRENT (MA) : 0 TO 25 MA SINK ACCURACY, +/-(0.015% OF RDG+0.002MA) VOLTAGE (VDC) : 0 TO 28 VDC INPUT ACCURACY, +/-(0.015% OF RDG+2 mV) RESOLUTION,0.001 VDC MAX ALLOWABLE VOLTAGE, 30 VDC SWITCH TEST : SWITCH TYPE, DRY CONTACT CLOSE STATE RESISTANCE, < 1>100 KOHM In the Package 1 X HPC52 PRESSURE CALIBRATOR HPC52 3BAR 300BAR 1 X ISO 17025 ACCREDITED CERTIFICATE , NIST TRACEABLE 3 X AA BATTERIES 1 X PROTECTIVE BOOT ( REQUIRED FOR INTRINSIC SAFETY) 1 X SET OF TEST LEADS WITH CLIPS,(RED & BLACK) 1 X VELCO STRAP 1 X USER MANUAL 1 X MINI-USB CABLE 2 X ADAPTOR MPM-1/4MPT 2 x CPF FEMALE TO CPF-FEMALE ADAPTOR, MPF-MPF 1 X PUMP SYSTEM HOX-1 COMPRISES OF , 1 X PUMP SYSTEM BXX COMPRISES OF 1xHAND HELD PNEUMTIC PUMP T-965(VACCUM - 2 BARG), 1 x ADAPTOR MPM-3/8BSPM, 1x ADAPTOR MPF-5/16SAEM, 1x1M PRESSURE HOSE WITH FITTINGS MPH-1, 1xADAPTOR MPF-1/4FPT,1xADAPTOR MPF-1/4BSPF, 1 X PUMP SYSTEM CHX COMPRISES OF 1xHAND HELD HYDRAULIC PUMP T-620H(0 - 350 BARG), 1 x ADAPTOR MPM-1/4MPT, 1x ADAPTOR MPF-1/8MPT, 1x1M PRESSURE HOSE WITH FITTINGS MPH-1, 1 x MPM PLUG,3x MPF-CAP 1xADAPTOR MPF-1/4FPT,1xADAPTOR MPF-1/4BSPF, 1 X WEATHER PROOF PELICAN CASE 1 X ADVANCED TEMPERATURE MODULE ATMI WITH RTD PROBE T5 ( 350MM LENGTH) INCLUDING ALUMINIUM CARRYING CASE C/W WITH CALIBRATION CERTIFICATE -45 DEG. C TO 400 DEG.C CALIBRATION POINTS ( -45/-30/-15/0/100/250/ 400 DEG.C ) P/N ATMi-T5 1 X SIRIM STANDARD CALIBRATION CERTIFICATE a. PORT 1 3 BAR b. PORT 2 300 BAR c. SIGNAL CALIBRATION (milliAMP AND VOLTAGE) d. TEMPERATURE MEASUREMENT CALIBRATION RANGE : -5 DEG. C TO 150 DEG. C ) (ADVANCED TEMPERATURE MODULE ATMi & STS-050A-350H-F TEMPERARURE PROBE )
