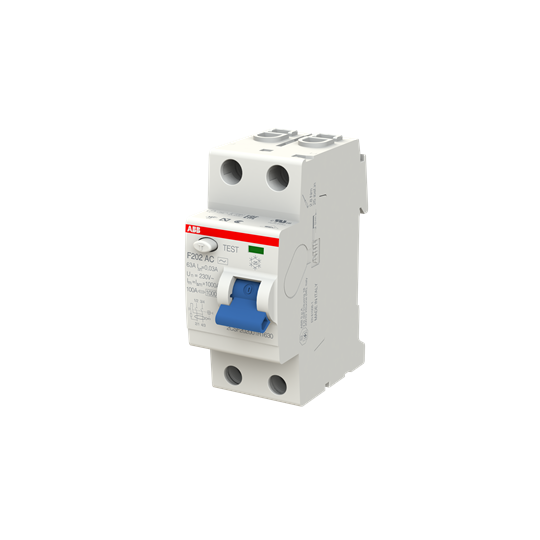

ABB 2 Pole Residual Current Circuit Breaker - F202F-63/0.03

Manufacturer: ABB Mfr. Part No.: F202F-63/0.03 F202 Type F, RCCB in two poles with rated current 25-40-63A and sensitivity 30mA for the protection of single phase circuits. Type F features at a glance: Type F RCDs offer the same range of protection and functionality as an RCD Type A APR this means that they detect sinusoidal AC currents as well as pulsating DC currents. In addition to this, they are also tested according to IEC/EN 62423 which foresees the application of a simulated multi-frequency residual current with appropriate coefficient associated to the each level of frequency up to 1kHz. The intervention characteristic has a short-time delayed which prevents unwanted tripping in case pulsed leakage currents of up to ten milliseconds occur at activation of filters. The RCDs Type F have a surge current withstand capacity of more than 3kA and can accept superimposed smooth DC residual currents of up to 10mA without affecting their standard functionality. Specifications Attribute Value Current Rating 63A Number of Poles 2 Trip Sensitivity 30mA Voltage Rating 230V Series F200 Overall Dimensions 35 x 69 x 85mm Earth Leakage Protection Type A-APR Reset Actuator Type Toggle Switch Terminal Contact Type Screw Overall Length 35mm Break Time Time Delay Mounting Style DIN Rail Mount Special Features Earth Fault Safety Protection Overall Width 69mm Overall Depth 85mm Breaking Capacity at Maximum Voltage Rating 10 kA Circuit Breaker Type RCCB
