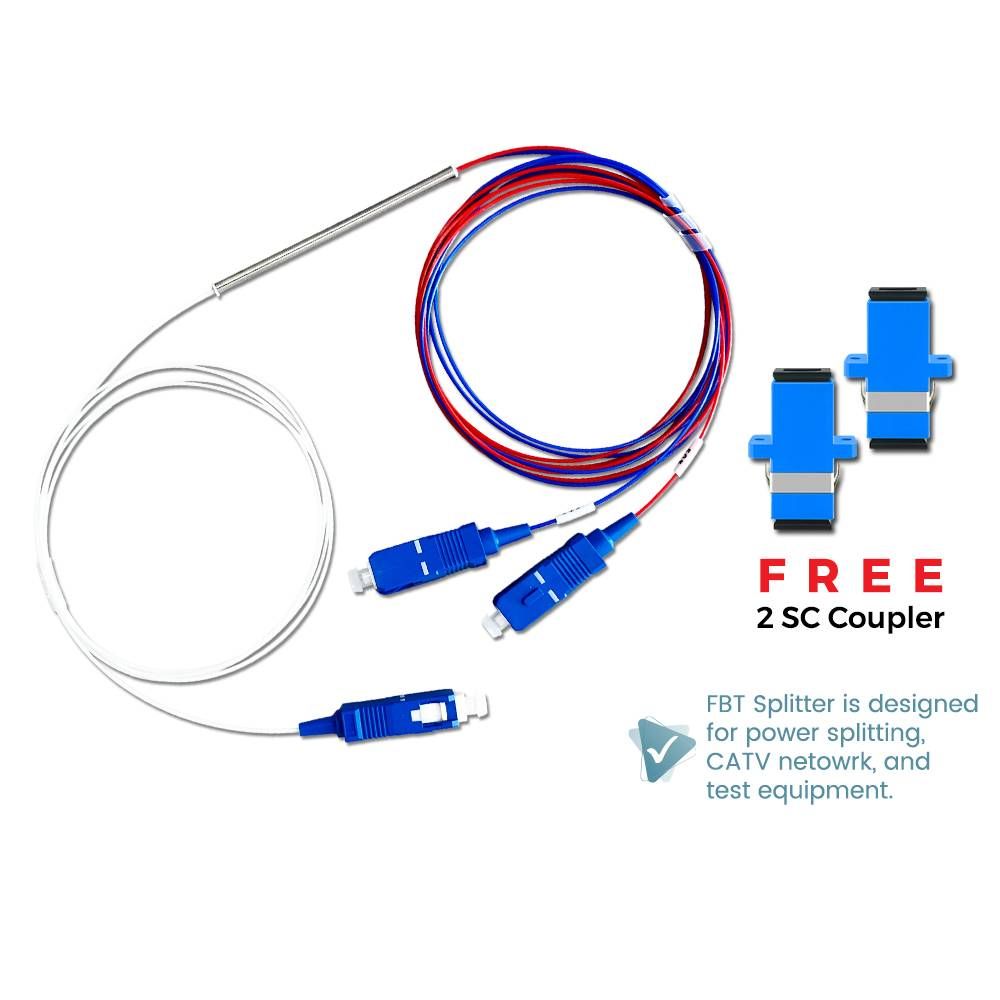

1 X 2 FIBER OPTIC FBT SPLITTER SM SC/UPC 0.9MM 1 METER

1x2 FBT Splitter is designed for power splitting and tapping in telecommunication equipment, CATV network, and test equipment. FBT Couplers working from 1310nm / 1490nm / 1550nm, they have 3 different wavelength. The excess loss is very low, no greater than 3.7dB for grade product model split ratio: 50/50 Feature: - High Return Loss - Steel tube-compact size - High Stability and Reliability - Wide Operating Temperature and Wavelengt - Excellent Environmental & Mechanical Stability - Low insertion loss and polarization dependent loss - Compact for small application areas like in closure or splice trays Specification: - FBT Fiber Coupler: 1 x 2 - Connector: SM SC/UPC - Division ratio: Blue 50% / Red 50% - Testing wavelengths: 1310nm / 1490nm / 1550nm - Length: 1 meter - Fiber type: SMF-28e 9/125 0.9mm - Low loss: < 3.7 - Return loss: > 55dB - PDL(dB): <0.20 - Operating temperature: -40? ~ + 85? Application: - FTTX networks (FTTP, FTTH, FTTN, FTTC) - CATV links - Data Communication - Passive Optical Networks (PON) - Local Area Networks (LAN) - Cable Television
